Hardboard Sheet Manufacturer
Standard-format hardboard sheet — the general-purpose fiberboard panel that moves through furniture, fit-out, and display supply chains at consistent volume.
S1S and S2S configurations, 3mm to 6mm thickness, 1220×2440mm standard sheet size. CARB P2 compliant as standard. Custom dimensions on confirmed orders.
What Hardboard Sheet Is — and Where It Fits in Your Product Mix
Hardboard sheet is the standard commercial format of high-density fiberboard: wood fiber compressed under heat and pressure to a density of 800–1000 kg/m³, cut to sheet dimensions, and finished with one smooth face (S1S) or two smooth faces (S2S). It's the format buyers default to when they need a flat, hard, dimensionally stable panel at a lower cost per square meter than plywood or MDF.
The commercial positioning is specific. Hardboard sheet isn't competing with structural plywood for load-bearing applications, and it isn't competing with MDF for routed or profiled components. It occupies the space where you need a hard, smooth, thin panel — cabinet backs, drawer bottoms, backing boards, display substrates, wall panel underlays — and where the cost and weight of thicker engineered panels would be wasteful. Buyers who stock it alongside plywood and MDF cover the full range of their downstream customers' panel requirements without gaps.
Within our hardboard range, the standard sheet is the general-purpose format. The standard hardboard sheet is the base format — raw or sanded, S1S or S2S, in the thicknesses and dimensions that cover the broadest range of applications.
Related Hardboard Variants
Primed Hardboard
Factory-primed surface ready for painting. For buyers specifying a paint-ready substrate.
Masonite Hardboard
For buyers specifying by the masonite trade name. Same high-density fiberboard construction.
Hardboard Paneling
Wall paneling applications with relevant surface and dimension options for interior fit-out.
Common Applications
Hardboard Sheet Specifications
Standard production parameters for our hardboard sheet. For custom dimensions or non-standard specifications, contact us to confirm feasibility and MOQ.
Standard Production Parameters
| Parameter | Standard Values |
|---|---|
| Thickness |
3mm 3.2mm 4mm 5mm 6mm
|
| Standard Sheet Size | 1220 × 2440mm (4×8 ft) |
| Density | 800–1000 kg/m³ |
| Surface Configuration |
S1S — smooth one side, textured reverse S2S — smooth both sides
|
| Thickness Tolerance | ±0.2mm across the panel |
| Moisture Content | 5–9% at dispatch |
| Formaldehyde Emission | CARB P2 compliant (E1 / E0 available on request) |
| Core Fiber | Eucalyptus and poplar fiber, FSC-certified supply chain |
| Certifications |
ISO 9001:2015 CARB P2 FSC CE
|
| Finish | Sanded (raw); primed available as separate variant |
| Custom Sizes | Available on confirmed orders |
| MOQ | 1 × 20HQ container (standard specifications) |
Specifications shown are standard production values. Actual parameters may vary by batch. Contact us for detailed product data sheets and confirmation of specifications for your specific application.
Why the ±0.2mm Tolerance Matters for Your Buyers
The ±0.2mm thickness tolerance is worth noting if your downstream customers run panels through automated cutting or laminating equipment. Thickness variation beyond that range causes feed errors and inconsistent laminate adhesion — problems that generate warranty claims and returns. We measure at multiple points across the panel, not just at the center, because edge-to-center variation is where poorly calibrated sanding lines fail and where the problems show up in automated processing.
At a Glance
- Thickness range 3–6mm
- Sheet size 1220 × 2440mm
- Density 800–1000 kg/m³
- Tolerance ±0.2mm
- Emission CARB P2
- MOQ 1 × 20HQ
Need a Product Data Sheet?
We can send full technical documentation including mechanical properties, test reports, and certification copies for your procurement team.
Request Data SheetS1S vs S2S: Which Surface Do You Need?
The surface configuration is one of the first decisions buyers need to make. It affects cost, downstream processing, and end-use suitability. Here's how to specify correctly.

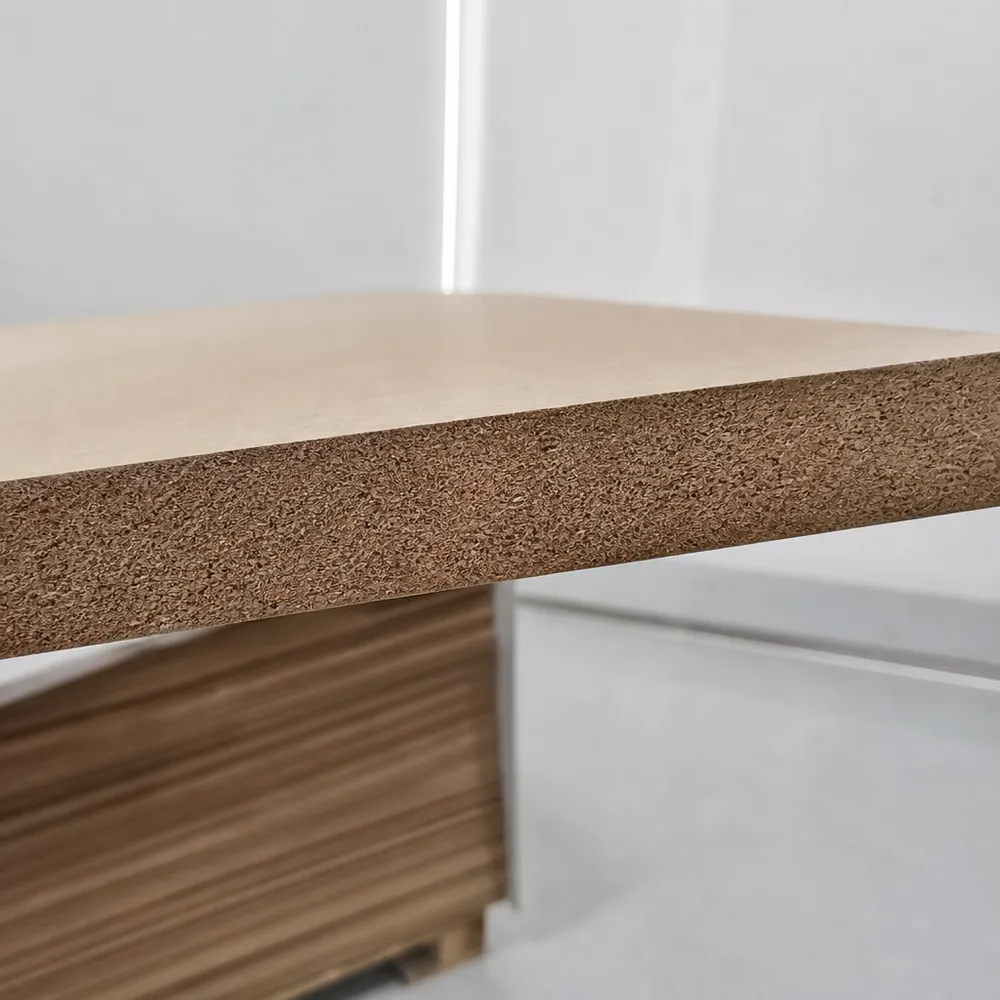

S1S — Smooth One Side
Textured mesh reverse
One face is sanded smooth and dense; the reverse retains the wire-mesh texture from the press. The textured side provides mechanical key for adhesives, making it the preferred configuration where the back face bonds to a substrate.
Best For
- Cabinet backs and drawer bottoms (smooth face visible, textured face glued)
- Backing boards where only one face is exposed
- Display substrates with single-face laminate or print
- Cost-sensitive applications where reverse face is hidden
S1S is the more common and lower-cost configuration. If your application only exposes one face, S1S is almost always the right call.
S2S — Smooth Both Sides
Sanded smooth on both faces
Both faces are sanded to the same smooth, dense finish. S2S costs slightly more due to additional processing, but is required wherever both faces are visible or where consistent surface quality on both sides is needed for laminating or coating.
Best For
- Wall paneling where both faces may be visible during installation
- Double-sided laminating or coating operations
- Furniture panels with exposed reverse faces
- Applications requiring uniform moisture absorption on both sides
Specify S2S when your downstream process applies laminate or coating to both faces simultaneously — the textured reverse of S1S can cause uneven adhesive spread on the back face.
Quick Decision Guide
Only one face visible?
→ S1S
Both faces laminated?
→ S2S
Gluing to substrate?
→ S1S (textured back keys better)
Cost-sensitive order?
→ S1S where possible
Hardboard vs MDF vs Plywood
Buyers frequently ask how hardboard compares to MDF and plywood. The answer depends on the application. Here's a direct comparison across the properties that matter most for panel selection.
| Property | Hardboard (HDF) | MDF | Plywood |
|---|---|---|---|
| Density | 800–1000 kg/m³ Highest | 650–800 kg/m³ | 450–700 kg/m³ |
| Thickness Range | 3–6mm (thin panels) | 6–30mm+ | 3–25mm+ |
| Surface Smoothness | Excellent (S1S/S2S) | Excellent | Variable (grain visible) |
| Moisture Resistance | Moderate (standard grade) | Low–Moderate | Good–Excellent (WBP) |
| Screw Holding | Limited (thin gauge) | Good | Excellent |
| Weight | Light (thin sheets) | Heavy | Moderate |
| Cost (relative) | Lowest | Mid | Highest |
| Typical Use | Cabinet backs, drawer bottoms, backing | Furniture carcasses, shelving, doors | Structural, flooring, exterior |
Choose Hardboard When
- You need thin, flat, smooth panels at low cost
- The panel is a backing or non-structural component
- High surface density is needed for print or laminate
Choose MDF When
- You need thicker panels for furniture carcasses or shelving
- Screw-holding and edge machining are required
- Routed profiles or shaped edges are part of the design
Choose Plywood When
- Structural strength or load-bearing is required
- Moisture or exterior exposure is a factor
- High screw-holding at edges is critical
S1S vs S2S: Which Configuration Your Buyers Actually Need
The surface configuration choice affects both application suitability and your per-unit cost. Getting it right before you place an order prevents downstream complaints and reorders.
The standard configuration for most furniture and cabinet applications. The smooth face goes outward — visible in the finished product — while the textured reverse faces inward or is hidden.
Primary Applications
- Cabinet backs in flat-pack and assembled furniture
- Drawer bottoms — textured reverse grips adhesive and fasteners
- Backing panels where only one face is visible
- High-volume furniture OEM supply chains
The textured reverse provides a mechanical advantage: it gives adhesive and fasteners more surface area to grip. S1S is the lower-cost option and covers the majority of volume applications.
Specified when both faces are visible or when the panel is used as a substrate for laminating or printing on both sides. The right choice when surface quality on both faces is non-negotiable.
Primary Applications
- Display fixtures and point-of-sale units
- Decorative panel applications with visible reverse
- Laminating film or paper to both faces
- Printing substrates where reverse telegraphing is a risk
A textured reverse face can telegraph through thin laminates and show in the finished surface. S2S costs slightly more per sheet due to the additional sanding pass — but it's the specification that prevents downstream complaints.
A Common Ordering Mistake — and How to Avoid It
We've had buyers order S1S for a display application and come back after their customer complained about the reverse face showing through a thin laminate. The fix is straightforward — specify S2S from the start — but it's the kind of thing that's easier to get right on the first order than to correct after the fact. If your end application involves laminating thin film or paper to the panel, or if both faces will be visible in the finished product, specify S2S. The per-sheet cost difference is small relative to the cost of a rejected batch.
Where Hardboard Sheet Moves: Market Segments and Order Patterns
Here's how the standard sheet format fits into the segments where our buyers are moving volume — and what drives reorder behavior in each.

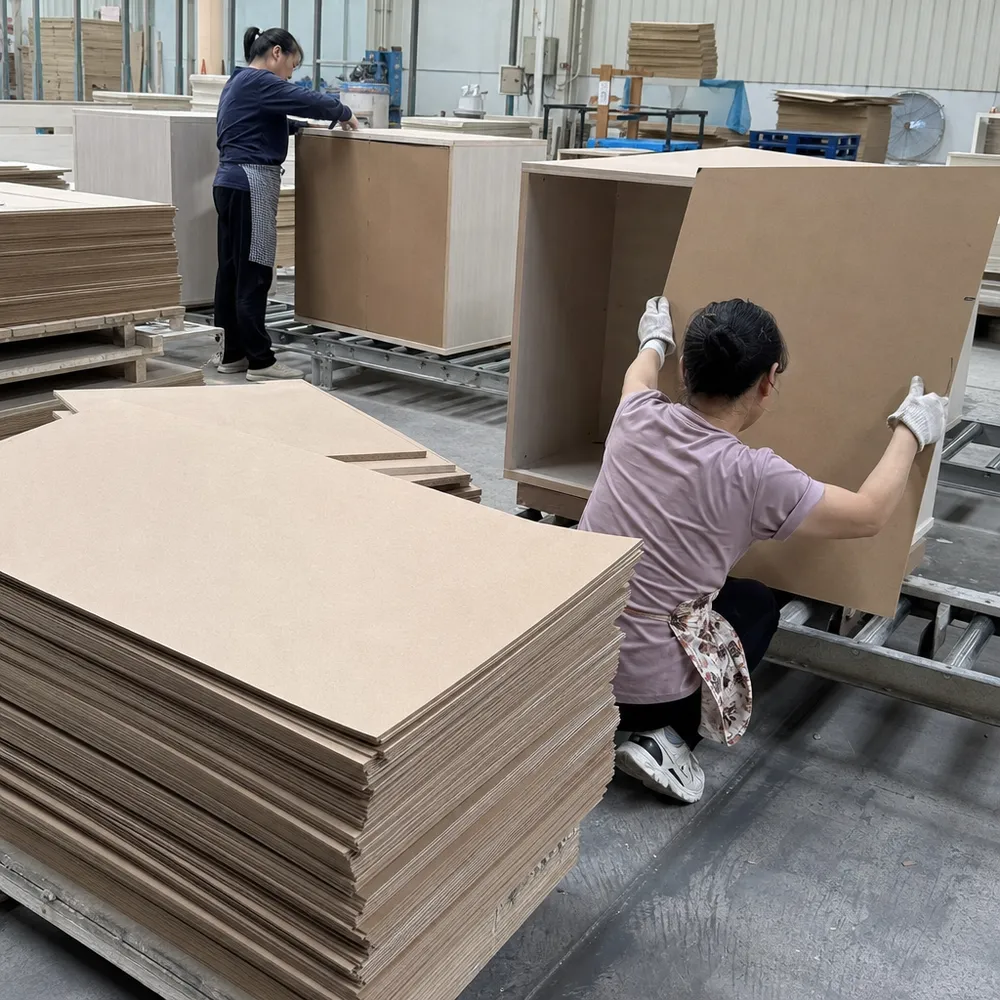

Furniture Manufacturing Supply Chains
Primary Volume DriverCabinet backs and drawer bottoms in flat-pack and assembled furniture are specified in 3mm or 3.2mm hardboard at scale. A mid-size furniture manufacturer running 50,000 cabinets per year needs 50,000 cabinet backs — hardboard sheet is the material.
The order pattern is regular and predictable: furniture OEMs reorder on production schedules, not project cycles. For distributors supplying furniture manufacturers, hardboard sheet is a high-frequency, low-complexity SKU that generates consistent revenue without the volatility of project-based products.

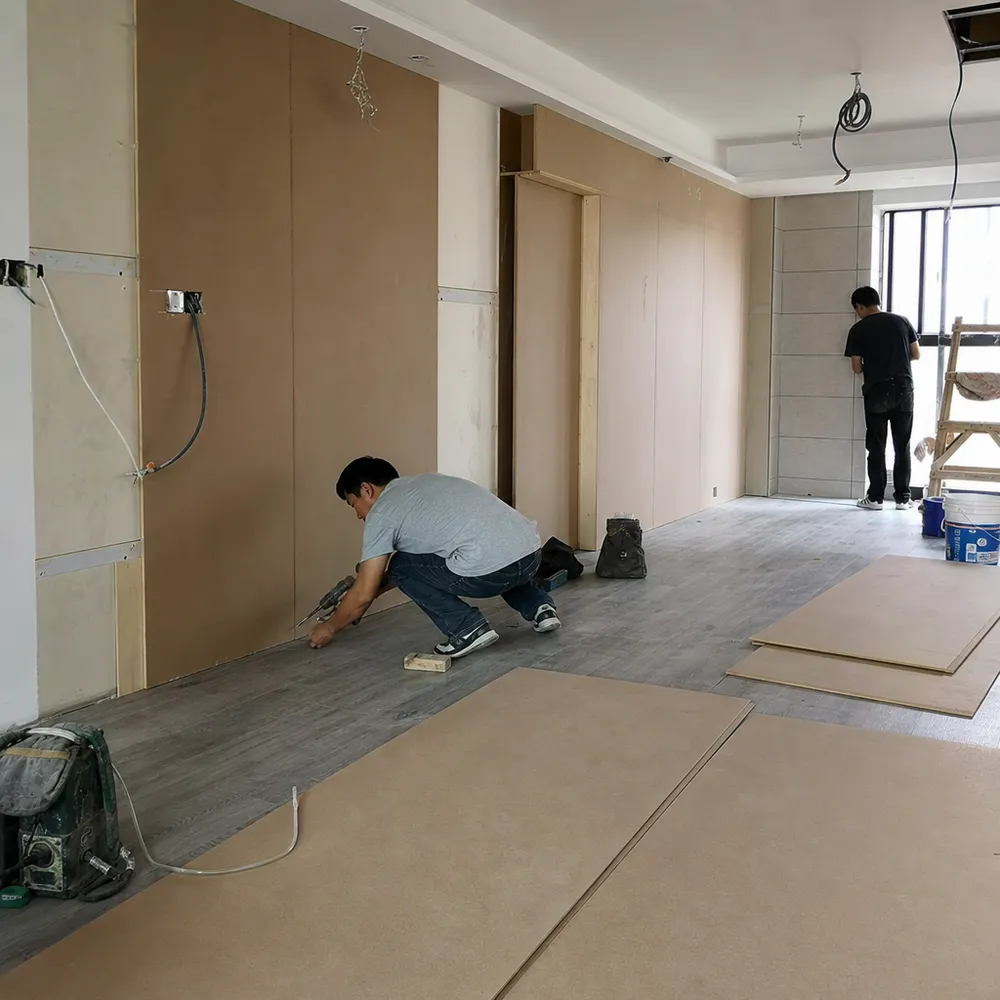

Interior Fit-Out and Renovation Supply Chains
Project-Based VolumeContractors use hardboard sheet under flooring, behind wall finishes, and as a base layer for decorative panels. The order pattern here is project-based — a contractor wins a fit-out contract and places a single order for the full project quantity.
Distributors who can supply consistent quality with short lead times capture this segment reliably. Surface quality is the critical spec: contractors applying paint or laminate over hardboard need a defect-free surface, and inconsistent sanding leaves marks that show through the finish.

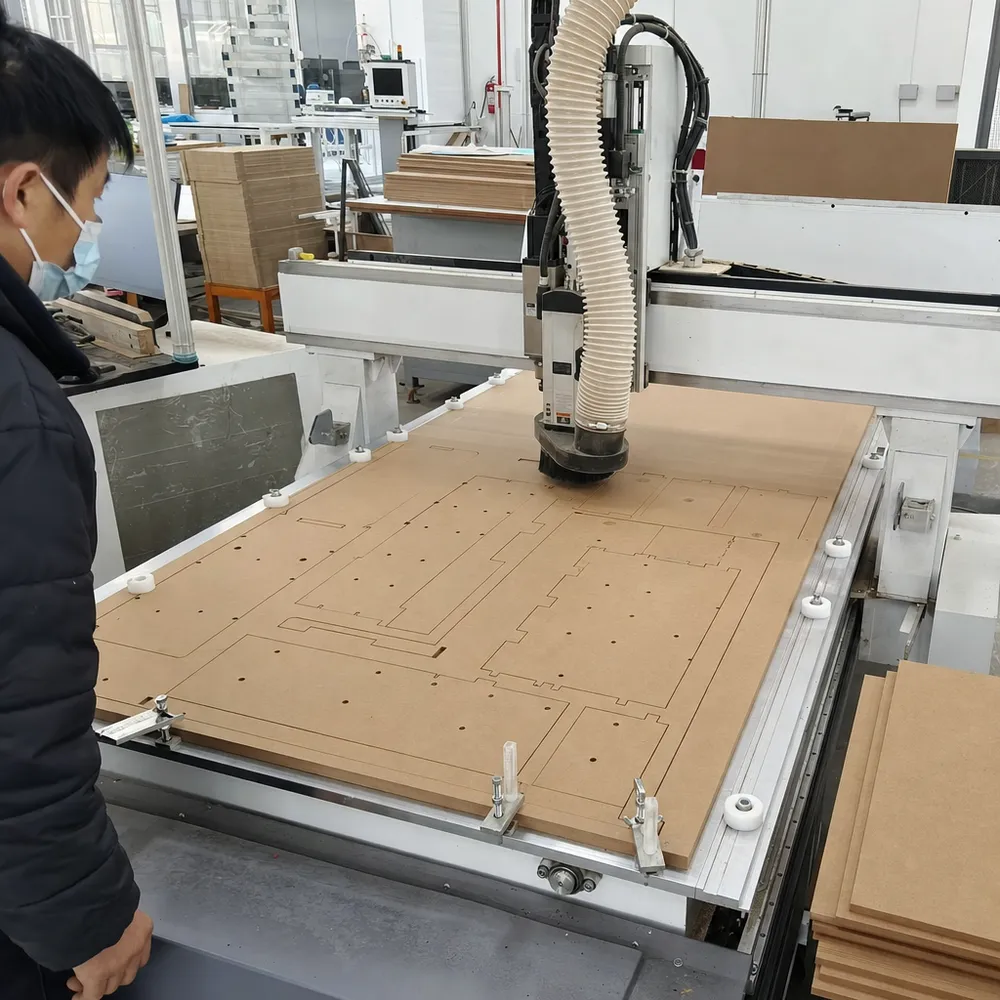

Display and Retail Fixture Manufacturing
S2S SpecificationDisplay manufacturers cut hardboard on CNC routers and laser cutters. The material holds a clean edge at 3mm where MDF tends to chip — MDF at 3mm is fragile at cut edges; hardboard at the same thickness holds together because the fiber density is higher.
If you're supplying into display or retail fixture manufacturing, hardboard sheet is a consistent volume item with good margin potential because the surface quality requirements create a natural quality filter that eliminates the cheapest suppliers.
Why 3mm hardboard outperforms 3mm MDF at cut edges: Higher fiber density in hardboard keeps the panel intact at thin cross-sections. MDF at the same thickness chips and crumbles at routed or laser-cut edges — a critical failure mode for display fixture components.

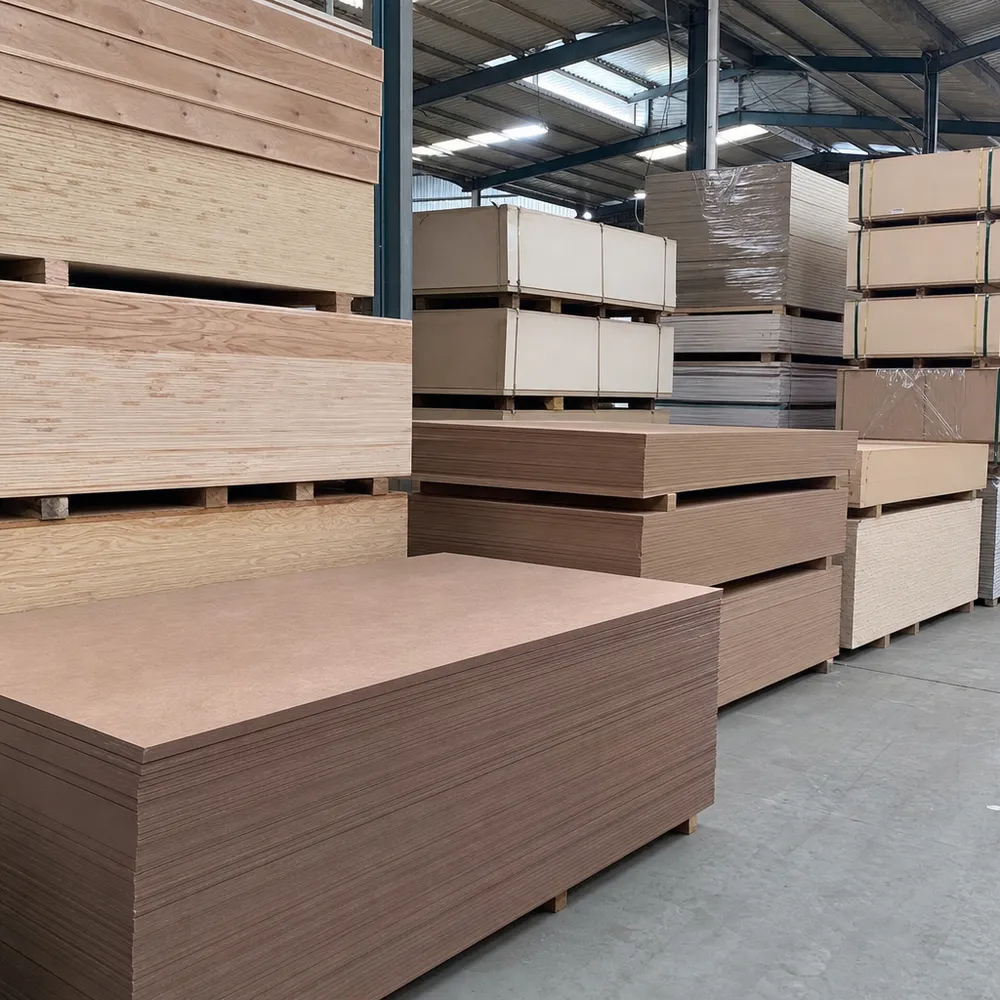

Building Products Distribution
North America · AustraliaBuilding products distribution in North America and Australia has established channels for hardboard sheet as a general-purpose panel material. It's a mature product category with predictable reorder patterns — distributors who stock it alongside plywood and MDF cover the full range of their trade customers' requirements.
The CARB P2 certification we hold as standard means US-market distributors can stock our hardboard without running a separate compliance qualification.
Segment Summary: Order Pattern by Channel
Use this to match your stocking strategy to the demand pattern of your end customers.
For the full commercial landscape across all hardboard formats — including paneling, furniture board, and primed variants — see the hardboard category overview.
How We Produce Hardboard Sheet: The Process Details That Protect Your Margin
The category page covers our hardboard manufacturing process in full — read the process overview on the hardboard page. What's specific to the standard sheet format is how we handle the variables that affect the two things buyers care most about: surface quality and dimensional consistency.
Fiber Preparation
Where surface quality is determined
Surface quality is determined at fiber preparation, not at the sanding stage. We use eucalyptus and poplar fiber refined to a consistent fiber length before the mat is formed. Inconsistent fiber length produces density variation in the pressed panel, and density variation is what causes the patchy surface that shows through paint or laminate finishes. By the time the panel reaches the sanding line, the surface quality is largely set — sanding reveals the surface, it doesn't create it.
Hot Press Parameters
Logged per batch for traceability
Hot press parameters for standard sheet are calibrated to the target thickness and density. We log press temperature, pressure, and cycle time per batch. This matters for two reasons:
- It gives us traceability if a bonding or density issue surfaces downstream.
- It means we can reproduce the same panel specification consistently across production runs — critical for furniture OEMs running the same cabinet design for years.
Post-Press Conditioning
Dimensional stability before sanding
Post-press conditioning runs before sanding. Panels that go straight from the press to the sander are still moving dimensionally — the fiber is still releasing stress from the pressing cycle. We condition panels before sanding so the dimensions are stable when we measure them.
Known failure mode from other suppliers: Skipping conditioning produces panels within tolerance when they leave the factory and out of tolerance when they arrive at the buyer's warehouse. The buyer measures on arrival and finds thickness variation that wasn't in the factory's outgoing inspection report. The cause is almost always insufficient conditioning time.

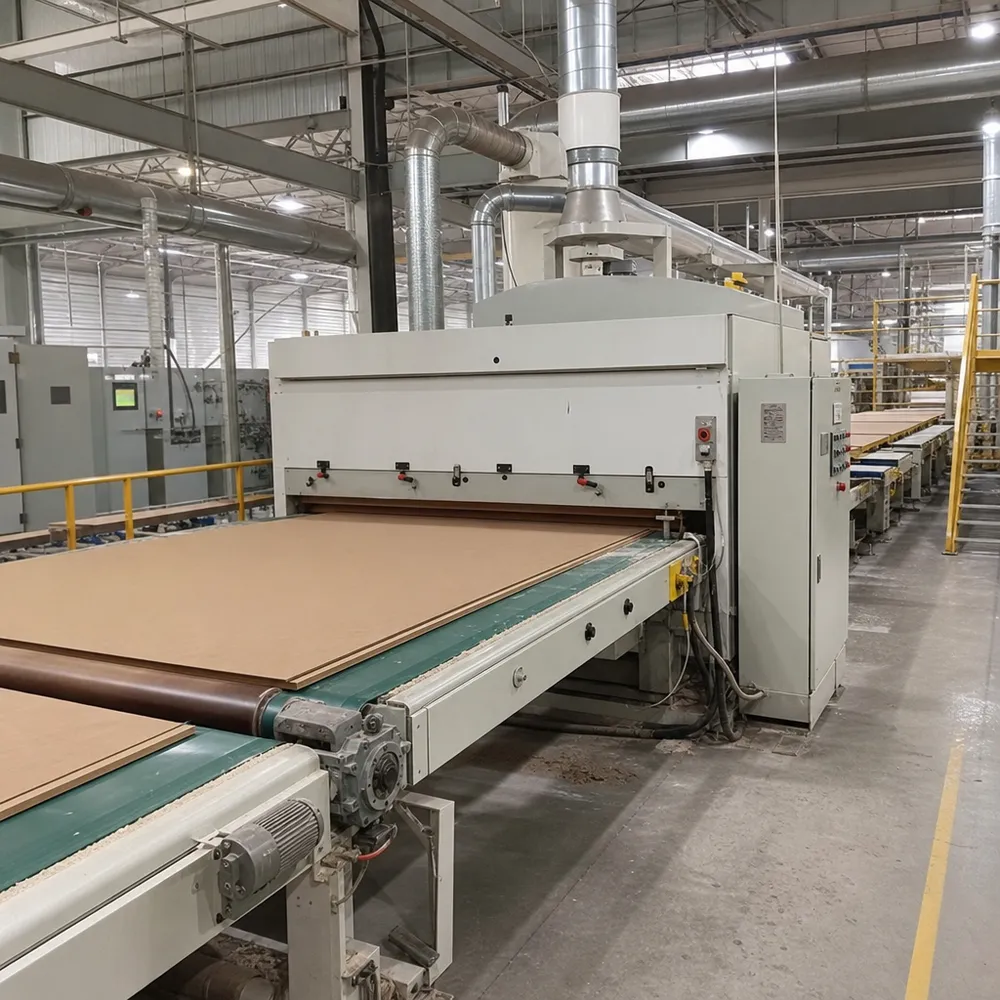

Sanding and Final Trim
±0.2mm tolerance, multi-point measurement
Sanding runs on calibrated wide-belt sanders targeting ±0.2mm tolerance. We measure at multiple points across the panel — center, edges, and corners — because edge-to-center variation is the failure mode that causes problems in automated processing.
Why Process Control Protects Your Margin
Buyers who need batch-to-batch consistency — furniture OEMs running the same cabinet design for years — need a supplier whose process is controlled, not one that hits the spec by luck on some batches and misses on others.
Consistent fiber length
Eliminates density variation that causes patchy surfaces under paint or laminate
Per-batch press logging
Full traceability if a bonding or density issue surfaces downstream
Conditioning before measurement
Dimensions are stable when measured — panels arrive within tolerance, not just leave within tolerance
Certifications and Compliance: What's Covered for Your Import Market
Our hardboard sheet carries the certification stack that covers the major import markets where our buyers operate. These aren't certifications we hold for one product line — they're facility-level certifications that apply across our full panel range, including hardboard sheet.
CARB P2
California Air Resources Board Phase 2
The most stringent formaldehyde emission standard in the US market. CARB P2 compliance is built into our resin system at the production stage — the low-formaldehyde resin formulation is the standard, not an upgrade option.
Documentation: CARB documentation package included as standard with US-bound shipments. SGS and Bureau Veritas third-party test reports available on request.
FSC Chain of Custody
Forest Stewardship Council
The wood fiber in our hardboard sheet can be traced back to FSC-certified forests. This covers buyers with sustainability sourcing policies and buyers supplying into markets where deforestation-linked supply chains are a regulatory or reputational risk.
Documentation: FSC documentation included for FSC-specified orders.
CE Marking
European Conformity
Covers European construction and building material applications.
Documentation: CE declaration of conformity included with EU-bound shipments.
ISO 9001:2015
Quality Management System
The quality management system certification that covers our production and QC processes.
Documentation: Audit reports available on request.
Multi-Market Sourcing Advantage
For distributors supplying into multiple regions
For buyers supplying into multiple markets — a distributor selling into both the US and Europe, for example — our certification stack means you're sourcing from a single supplier whose documentation covers both markets.
You don't need to qualify separate suppliers for CARB-compliant and CE-compliant product.
Customization Parameters: What We Can Adapt and What the Limits Are
Standard hardboard sheet covers most applications, but buyers building specification-matched supply chains or private-label programs regularly need adjustments. Here's what we can adapt and where the practical limits are.
Custom Dimensions
We cut to non-standard sizes on confirmed orders. Common requests include half-sheet formats (1220×1220mm), long panels for specific paneling applications, and narrow strips for furniture component supply.
Custom cutting is a scheduling and yield question — no tooling cost, but minimum order quantities apply to make the run economical. Contact us with your target dimensions and we'll confirm MOQ and lead time.
Custom Thickness
Beyond the standard range (3mm–6mm), we can produce to specific thickness targets. The practical range for hardboard sheet is 2.5mm to 8mm.
Below 2.5mm, the panel becomes fragile in handling and transit.
Above 8mm, MDF or plywood is usually the more appropriate material for the application.
Non-standard thicknesses require higher MOQ than standard production runs.
Formaldehyde Specification
CARB P2 is our standard baseline. E1 and E0 specifications are available for buyers supplying into markets with stricter indoor air quality requirements.
The resin system is adjusted at the production stage — this is a manufacturing parameter, not a post-production treatment.
Surface Treatment Upgrades
S1S and S2S raw sanded are the standard configurations for hardboard sheet. If you need a primed surface, that's handled as a separate product variant with its own MOQ and lead time.
Primed surface: primed hardboard — separate product variant
Film-overlaid options available for specific surface texture or color requirements
Minimum quantities apply for custom film specifications.
Private Label and OEM Marking
Bundle marking, custom packing lists, and private-label documentation are available for buyers building their own brand around our production. We've run OEM programs for distributors in North America and Europe who supply hardboard under their own brand.
Have a non-standard specification?
Send us your specification and we'll confirm what's feasible — dimensions, thickness, surface, formaldehyde grade, or OEM program.

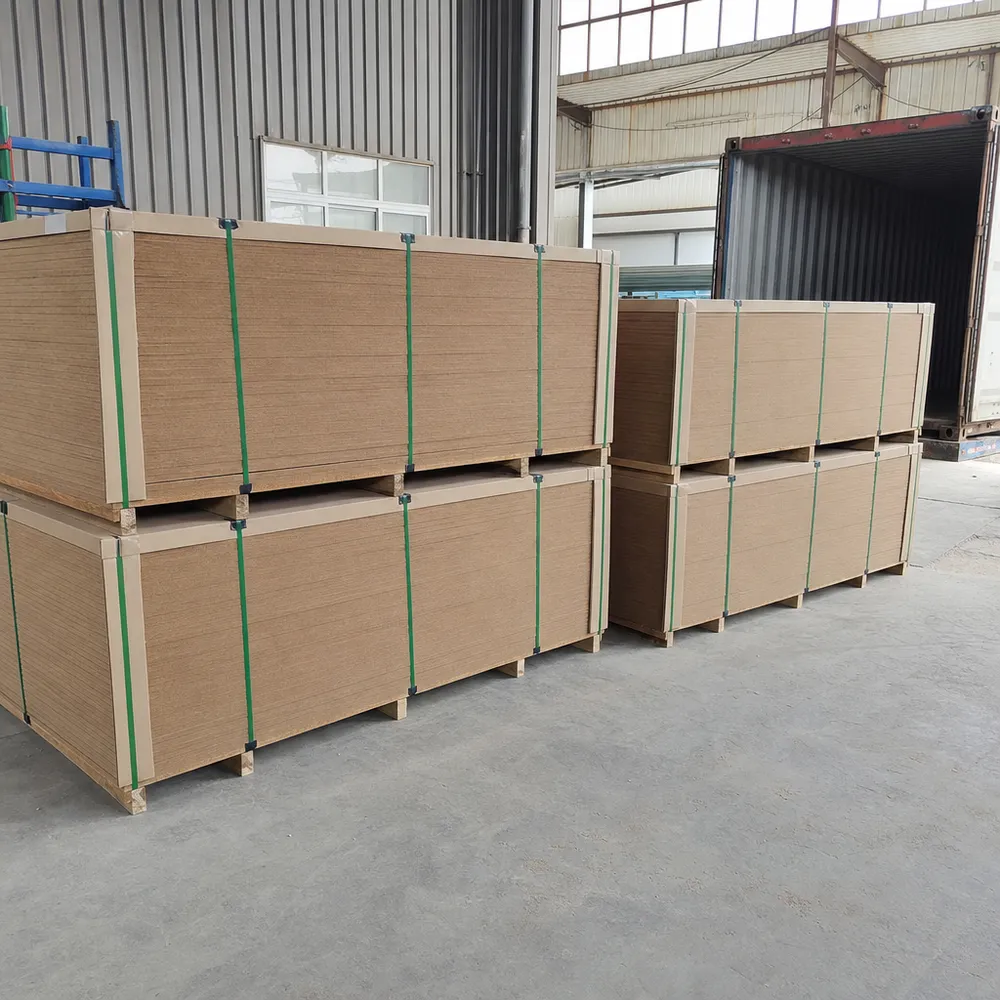

Container Loading and Export Logistics
Hardboard sheet loads efficiently in standard containers. Standard 1220×2440mm panels stack flat and achieve high cubic utilization in 20HQ and 40HQ containers. We provide loading plans with each shipment so your receiving team knows the bundle configuration, stack count, and total panel quantity before the container arrives.
Typical Container Loading — Standard Hardboard Sheet
| Container Type | 3mm Sheet | 6mm Sheet |
|---|---|---|
|
20HQ
|
~2,800–3,200 sheets | ~1,400–1,600 sheets |
|
40HQ
|
~5,800–6,500 sheets | ~2,900–3,200 sheets |
Loading quantities are approximate and vary by exact thickness, bundle configuration, and any mixed-product loading. We provide exact loading plans with each order confirmation.
Mixed-Product Consolidated Loads
For mixed-product orders — hardboard sheet combined with plywood, MDF, or other panel types from our range — we coordinate consolidated loads to reduce your per-unit freight cost. Most buyers who start with hardboard sheet expand their sourcing to other panel categories once they've seen how we handle documentation and logistics.

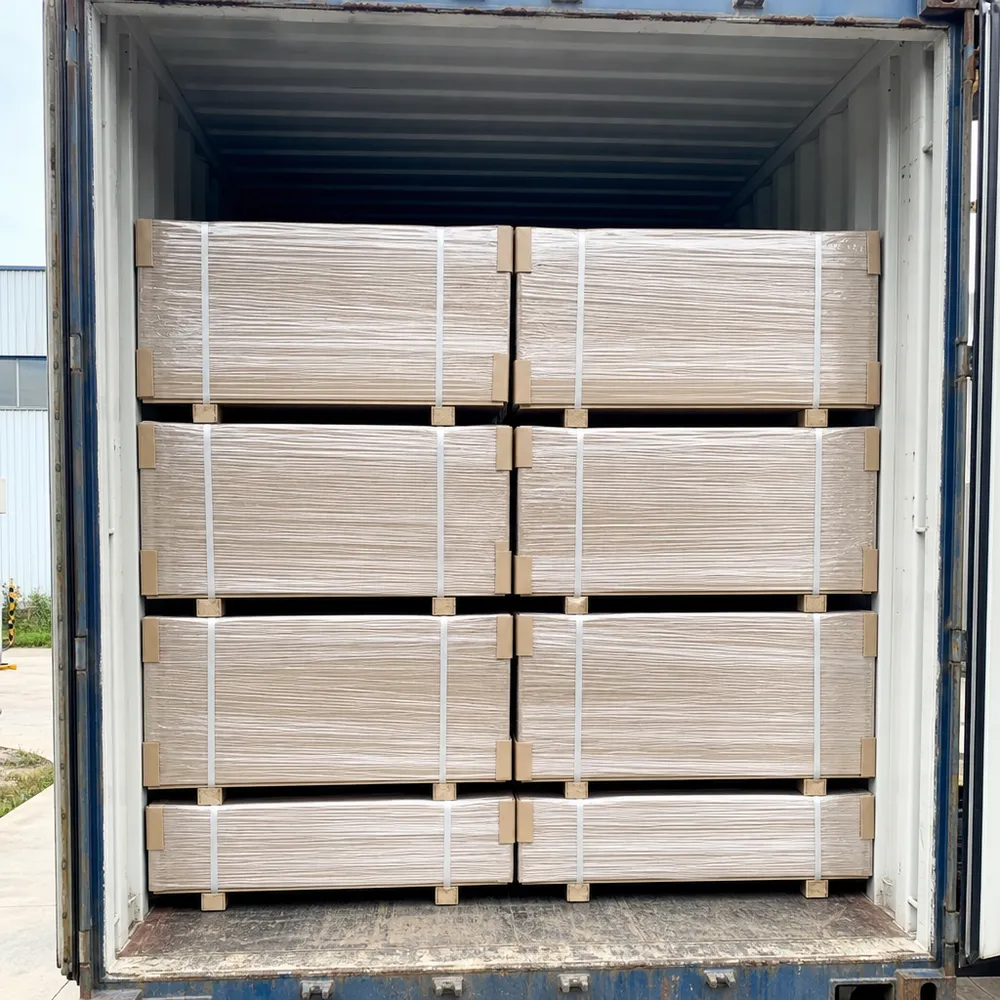

Export Packaging

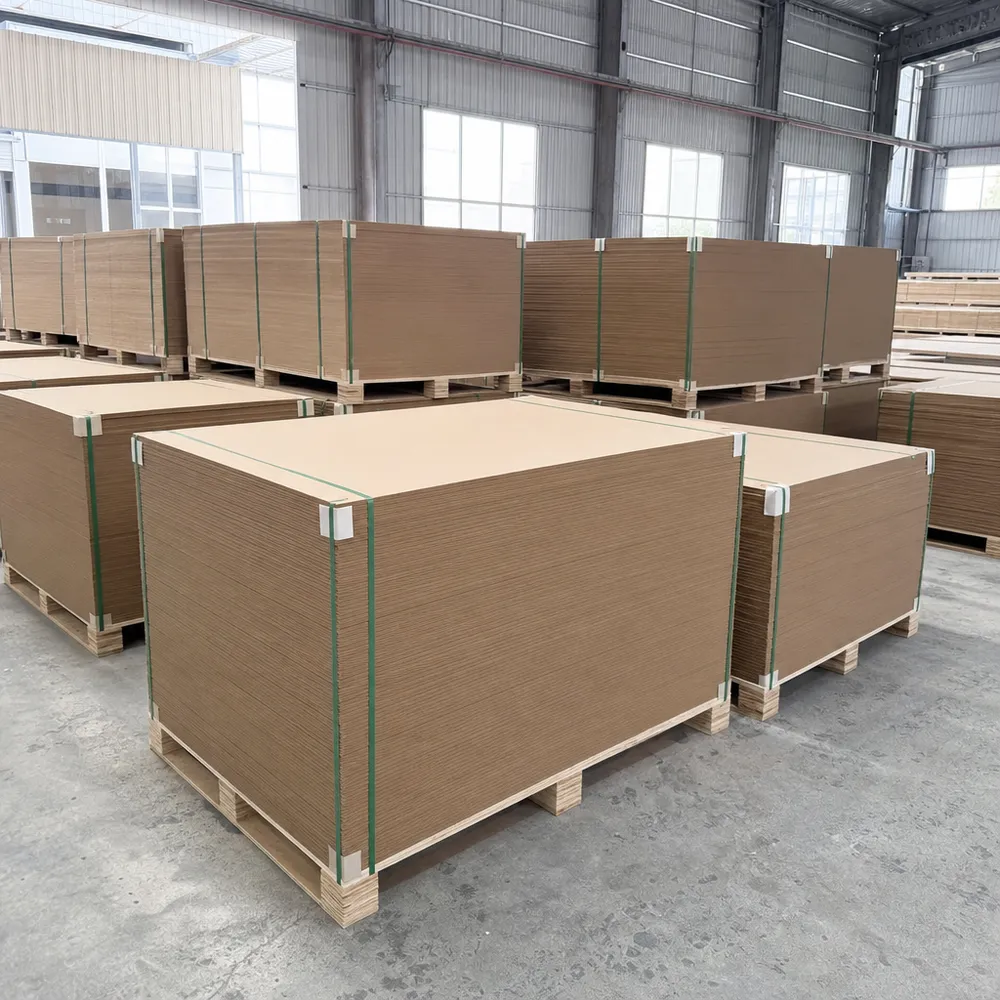

Panels bundled and strapped, edge-protected with corner boards
Wrapped in moisture-resistant film — standard for all export shipments
Each bundle marked with product specification, quantity, batch number, and destination port
The moisture-resistant wrapping is standard for export — hardboard that absorbs moisture during ocean transit arrives dimensionally unstable. We've seen enough containers from other suppliers arrive with warped panels to know that skipping the wrapping is a false economy.
Transit Times from Xuzhou
Standard Export Documentation
Included with every shipment — no additional request required for standard documents.
Commercial Invoice & Packing List
Standard trade documentation for customs clearance
Bill of Lading
Issued per shipment for freight and title transfer
Certificate of Origin
Required for tariff classification and import duties
Phytosanitary Certificate
Provided where required by destination country
CARB P2 Documentation
Standard for all US-bound shipments
FSC Chain-of-Custody Records
Provided for FSC-specified orders
CE Declaration of Conformity
Included for all EU-bound shipments
Additional documentation available on request for specific import markets
Hardboard Sheet vs. Sibling Products: Choosing the Right Format
The hardboard range covers six variants. Here's how to navigate between them based on what your buyers actually need.
| If your buyers need… | The right format |
|---|---|
| General-purpose flat panel, raw or sanded | Hardboard Sheet This page |
| Factory-primed surface, ready for painting | Primed Hardboard |
| Masonite specification by trade name | Masonite Hardboard |
| Interior wall cladding panels | Hardboard Paneling |
| Cabinet backs and drawer bottoms at scale | Hardboard Furniture Board |
| Thin-sheet format specifically at 3mm | 3mm Hardboard |
When to start with the standard sheet
The standard hardboard sheet is the right starting point if you're building a distribution SKU mix or if your buyers haven't specified a particular surface treatment or application format. It's the most flexible format — it can be cut, laminated, painted, or used raw — and it's the format with the broadest application coverage across furniture, fit-out, and display segments.
Not sure which format fits your market?
Send us your downstream application and we'll recommend the configuration that moves in that segment based on what we're shipping to similar markets today.
Describe your applicationExplore the full hardboard range
Frequently Asked Questions
Answers to the specification and sourcing questions we hear most often from importers and distributors.
The standard sheet size is 1220×2440mm (4×8 ft), which is the dominant format in global distribution and the size that loads most efficiently into standard containers. We also produce 1220×1830mm (4×6 ft) on request, and custom dimensions are available on confirmed orders with appropriate MOQ. If your market uses a different standard sheet size, contact us to confirm availability.
3mm is the standard for most residential furniture cabinet backs — it's the thickness that balances rigidity, weight, and cost for this application. 3.2mm is specified where slightly more rigidity is needed or where the cabinet back is visible and needs to resist flex under load. For commercial or heavy-duty furniture, 4mm is sometimes specified.
We hold 3mm and 3.2mm as standard production thicknesses with shorter lead times than non-standard dimensions.
One smooth face, one textured reverse. Standard for cabinet backs, drawer bottoms, and backing panels where only one face is visible. Covers the majority of furniture and fit-out applications.
Both faces sanded smooth. Specified for display applications, laminating substrates, and any application where both faces are visible or where a thin laminate is applied to both sides. Costs slightly more per sheet.
If you're unsure which configuration your buyers need, S1S covers the majority of furniture and fit-out applications.
Yes. CARB P2 compliance is our standard baseline — it's built into the resin system at the production stage, not added as an option. We include the CARB documentation package as standard with US-bound shipments.
Third-party test reports from SGS or Bureau Veritas are available on request if your buyers require independent verification.
Standard hardboard sheet is not suitable for exterior or continuously wet environments — it will absorb moisture and swell.
Semi-exposed or high-humidity interiors (bathrooms, kitchens): ask us about moisture-resistant surface treatment options.
Exterior applications: film-faced plywood or exterior-grade MDF is the appropriate material. We can advise on the right product for your specific application if you describe the end-use environment.
Standard specifications
One 20HQ container
Standard thickness, standard sheet size, S1S or S2S
Custom specifications
Higher MOQ applies
Custom dimensions, non-standard thicknesses, or custom surface treatments — specific quantity depends on specification
Contact us with your target specification and we'll confirm MOQ and lead time.
Have a question not covered here?
Send us your specification or application details and we'll respond with a direct answer.
Get a Quote for Hardboard Sheet
We've been manufacturing hardboard and engineered wood panels since 2008. Send us your target specification and we'll come back with a detailed quote, relevant certification documentation, and a loading plan so you can calculate your landed cost accurately before committing.
What to Include in Your Request
Send us your target specification and we'll respond with a detailed quote, the relevant certification documentation, and a loading plan so you can calculate your landed cost accurately before committing.
- Thickness — 3mm, 3.2mm, 4mm, 5mm, or 6mm
- Surface configuration — S1S (one smooth face) or S2S (both faces smooth)
- Sheet size — standard 4×8 ft / 1220×2440mm or custom dimensions
- Annual volume estimate — helps us confirm lead time and pricing tier
- Destination market — determines which certification documentation applies
New to Hardboard?
If you're building out a distribution SKU mix, tell us your target market and the applications your customers are running. We'll suggest the thickness and surface configuration that moves in that segment based on what we're shipping to similar markets today.
Consolidated Supply Chain
Hardboard sheet is part of a broader panel portfolio. Most buyers who source hardboard sheet from us also run plywood, MDF, or melamine-faced panels through the same supply chain — which simplifies procurement and consolidates your documentation requirements.
Ready to Request a Quote?
Send us your specification — thickness, surface, sheet size, annual volume, and destination market — and we'll respond with pricing, certification documentation, and a container loading plan.
Explore Related Hardboard Products
Xuzhou QD Wood Industry Co., Ltd.
No. 88 Sanbao Industrial Park, Tongshan District, Xuzhou, Jiangsu Province, 221116, China
