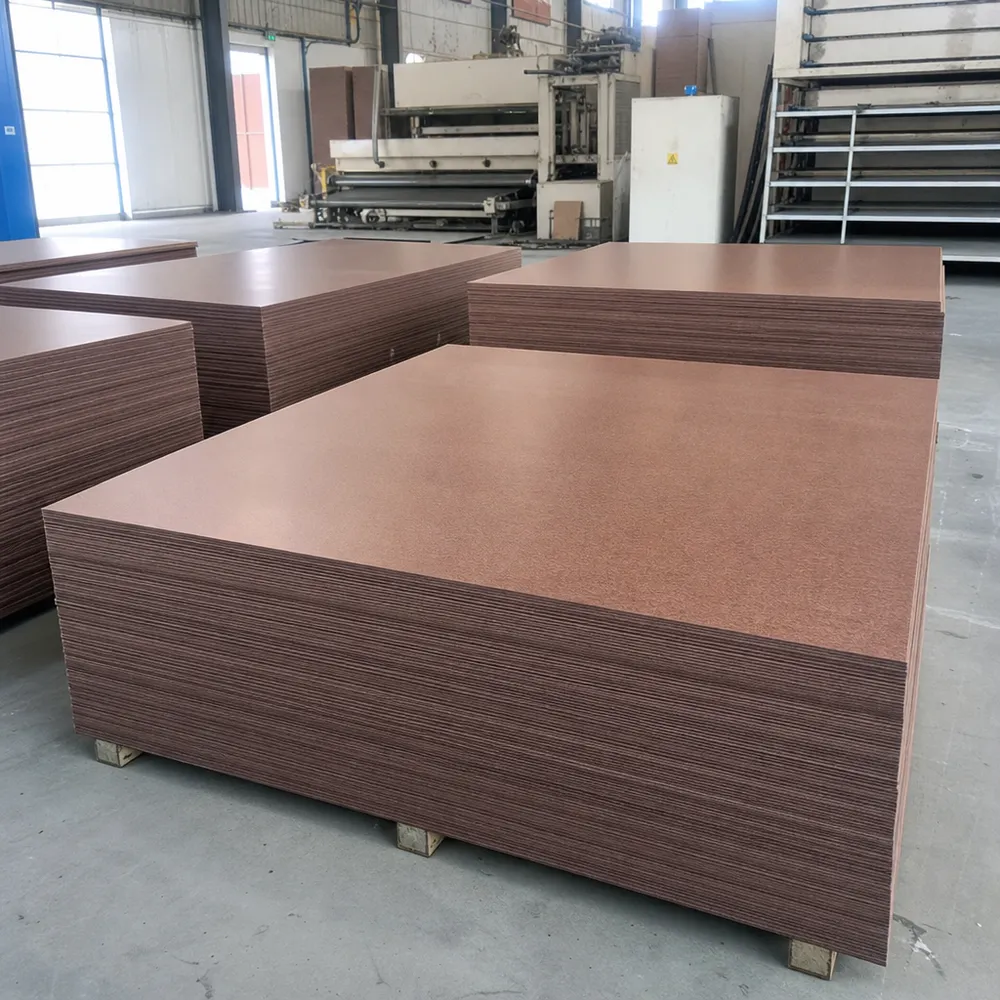

MDO Plywood Manufacturer — Factory-Direct MDO Board Supply
Medium density overlay plywood with resin-impregnated paper face — engineered for paint adhesion, dimensional stability, and repeated-use applications.
We manufacture MDO plywood to export-grade standards from our 18,000 m² facility in Xuzhou, China. CARB P2 and FSC certified, with 6 production lines running 450,000 m³ annual capacity.
What MDO Plywood Is — and Where It Fits in Your Product Line
MDO plywood — medium density overlay — is a structural plywood panel with a resin-impregnated fiber overlay bonded to one or both faces under heat and pressure. The overlay is not a coating applied after pressing; it's fused into the panel surface during the hot press cycle, which is why it behaves differently from painted or film-faced alternatives. The result is a surface that accepts paint uniformly, resists moisture penetration, and holds dimensional stability through repeated wet-dry cycles.
The commercial case for stocking MDO board is straightforward: it sits between standard sanded plywood and film-faced formwork panels in both price and performance. Buyers who need a paintable, smooth-faced panel for signage, concrete forming, or exterior sheathing applications will pay a premium over commodity plywood — and MDO delivers that premium without the cost structure of HPL or phenolic film-faced products. For distributors building a paper-overlaid plywood range, MDO is typically the anchor SKU because it covers the widest range of end-use applications.
We've been producing paper-overlaid panels since the early years of the operation. The overlay bonding process is the technically demanding part — get the press temperature, pressure, or resin saturation wrong and you get delamination at the overlay-to-veneer interface, which shows up as bubbling or peeling after the panel is painted. We run the overlay pressing on a dedicated line with tighter temperature tolerances than our standard plywood lines, specifically because the overlay resin has a narrower cure window than standard phenolic glue.
Fused Overlay
Bonded under heat and pressure during pressing — not a post-applied coating

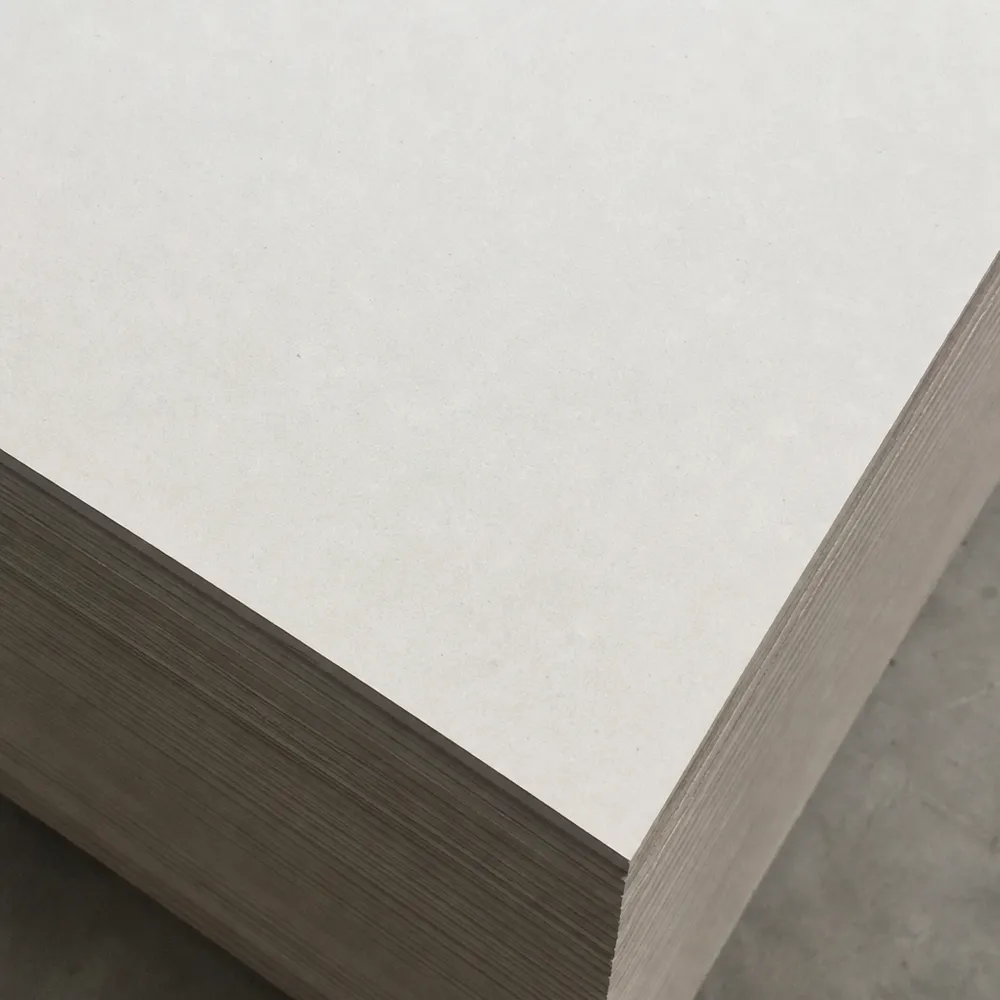

Paint-Ready Surface
Accepts latex and oil-based paints uniformly — no sanding or priming required
Anchor SKU
Widest end-use coverage in the paper-overlaid range — signage, forming, sheathing
Market Positioning
MDO sits between standard sanded plywood and film-faced formwork panels in both price and performance — delivering a paintable premium surface without the cost structure of HPL or phenolic film-faced products.
MDO Plywood Specifications
The table below covers industry-standard parameters for MDO plywood as we produce it. Actual specifications are confirmed at order stage — contact us with your target application and we'll confirm the exact configuration.
Standard MDO Plywood Parameters
| Parameter | Typical Specification |
|---|---|
| Panel size | 1220 × 2440 mm (4' × 8') standard; custom sizes available |
| Thickness range |
12mm 15mm 18mm 21mm 25mm other on request
|
| Overlay type | Resin-impregnated fiber paper (medium density) |
| Overlay weight | Typically 220–280 g/m² per face |
| Overlay faces |
1-side (B/BB) 2-side (B/B)
|
| Core construction | Hardwood veneer core, cross-banded |
| Glue type | WBP (weather and boil proof) phenolic resin |
| Moisture content | 8–12% (export standard) |
| Thickness tolerance | ±0.5mm |
| Surface | Smooth, paintable; accepts latex and oil-based paints |
| Formaldehyde emission | CARB P2 compliant (≤0.05 ppm for hardwood plywood) |
| Certifications |
CARB P2 FSC ISO 9001:2015 CE
|
Specifications represent standard production parameters. Custom overlay weights, panel dimensions, and emission grades are available — confirm requirements at order stage.
Compliance Snapshot
-
CARB Phase 2
Meets California Air Resources Board formaldehyde limits for hardwood plywood
-
FSC Chain of Custody
Certified responsible forest sourcing — available on request for LEED and green-build projects
-
CE Marking
Declared performance under EN 13986 for structural and non-structural applications in the EU
-
ISO 9001:2015
Quality management system certification covering production and supply chain
Thickness Selection Guide
- 12mm Signage, light cladding
- 15mm Hoarding, display boards
- 18mm Most popular — forming, sheathing
- 21mm Heavy-duty forming
- 25mm Structural / load-bearing
Other thicknesses available on request. Minimum order quantities apply for non-standard sizes.
Need a Technical Data Sheet?
We can provide a full TDS for your target thickness and overlay configuration — useful for procurement, engineering sign-off, or project submittals.
Request TDSWhere MDO Plywood Is Specified
MDO's combination of structural plywood core and smooth, paintable overlay makes it the default choice across several distinct end-use categories. Each application leverages a different aspect of the panel's performance profile.
Outdoor Signage & Painted Boards
The most established MDO application. The smooth overlay accepts sign paints, vinyl, and digital print substrates without telegraphing grain — critical for legibility and finish quality on roadside, retail, and construction hoarding.
- Highway and roadside sign blanks
- Construction site hoarding panels
- Retail display and POS boards
- Event and exhibition graphics
Concrete Formwork & Shuttering
MDO's resin-impregnated overlay resists moisture absorption during pours, releases cleanly, and produces a smooth concrete face. WBP glue line ensures the panel holds together through repeated wet-dry cycles.
- Wall and column formwork
- Slab and deck shuttering
- Architectural concrete finish panels
- Re-usable forming systems
Exterior Wall Sheathing & Cladding
Used as a structural sheathing layer in timber-frame and light-gauge steel construction. The overlay provides a weather-resistant surface that can be painted directly, reducing the need for additional cladding materials.
- Residential and commercial wall sheathing
- Painted exterior cladding panels
- Soffit and fascia boards
- Prefab and modular panel systems
Truck Bodies & Trailer Panels
MDO's dimensional stability and smooth paintable surface make it a practical choice for vehicle body panels, trailer side walls, and interior linings where a clean, branded finish is required.
- Truck and van body side panels
- Trailer interior linings
- Refrigerated vehicle panels
- Fleet livery and branding substrates
Painted Cabinetry & Millwork
Where a painted finish is the design intent, MDO eliminates the grain-telegraphing problem of standard plywood. Cabinet doors, drawer fronts, and built-in millwork achieve a factory-smooth painted result without MDF's weight and moisture sensitivity.
- Painted cabinet doors and drawer fronts
- Built-in shelving and casework
- Retail fixture and display units
- Architectural millwork panels
Marine & Industrial Panel Uses
WBP glue bond and moisture-resistant overlay make MDO suitable for demanding environments. Used in boat interiors, dock structures, and industrial enclosures where a smooth, durable, paintable surface is needed under wet or humid conditions.
- Boat cabin and interior panels
- Dock and marina structures
- Industrial equipment enclosures
- Wet-area utility panels
Not sure which configuration fits your application?
Tell us the end use, exposure conditions, and any finish or certification requirements — we'll confirm the right thickness, overlay weight, and glue specification for your project.

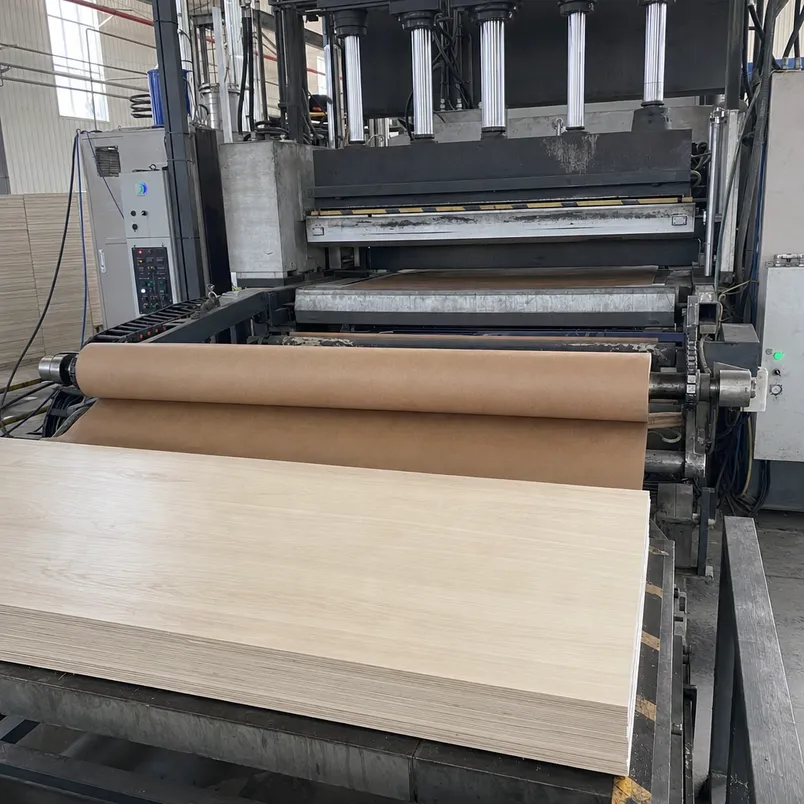

The Overlay Bonding Process — Where MDO Quality Is Made or Lost
The performance difference between MDO panels that hold up in the field and those that fail after painting comes down almost entirely to the overlay bonding step.
We've seen the failure mode: overlay paper that wasn't fully saturated with resin, or pressed at insufficient temperature, bonds to the veneer face mechanically rather than chemically. It looks fine off the line. It fails when the panel gets wet, expands slightly, and the overlay separates at the interface — which your downstream customer discovers after they've already painted and installed it.
Press Parameters
Why This Matters for Your Accounts
Your downstream customers — sign fabricators, concrete contractors, exterior sheathing installers — are painting these panels and expecting the paint to hold. A panel that passes a visual check but fails in the field generates warranty claims and damages your reputation with that account. The process controls above are what prevent that outcome.
Post-Press Quality Controls
Every MDO panel is inspected before reaching the sanding line. Any panel showing edge lifting, surface bubbling, or uneven texture is pulled.
The sanding step is calibrated to bring the overlay surface to consistent smoothness without cutting through the overlay layer — a real risk if sanding pressure is set for standard veneer rather than overlay. The MDO line runs at a lighter sanding pass than standard plywood.
Overlay thickness is checked at panel edges after sanding to confirm overlay integrity has not been compromised.
The commercial implication: A panel that passes a visual check but fails in the field generates warranty claims and damages your reputation with that account. The process controls above are what prevent that outcome.
Market Segments Where MDO Board Generates Repeatable Volume
MDO plywood serves four distinct end-use segments, each with predictable reorder patterns and specific surface quality requirements that commodity plywood cannot meet.

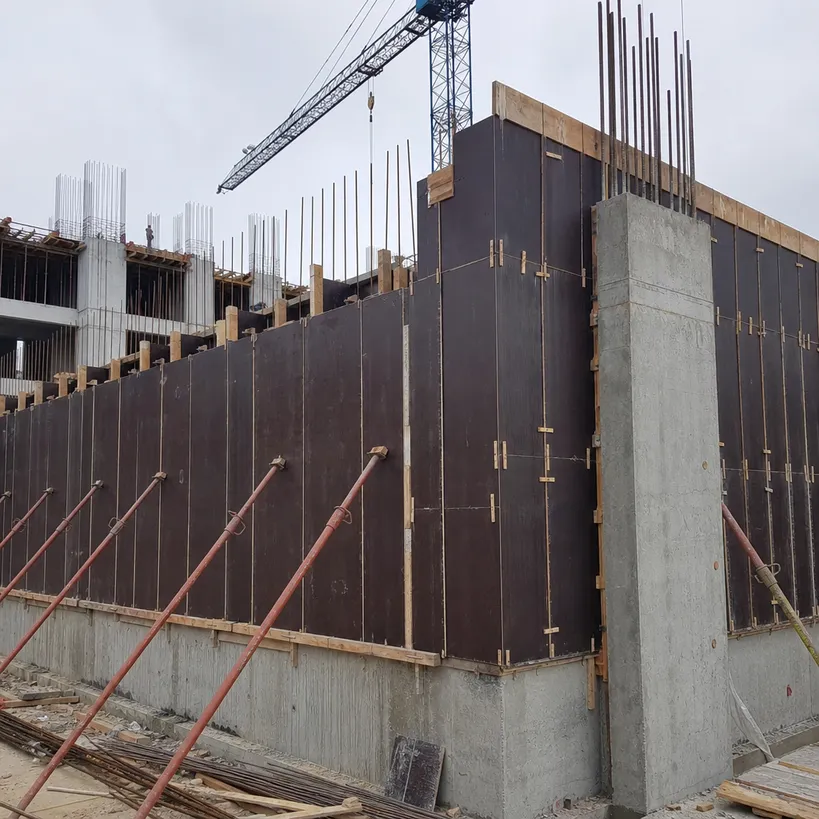

Concrete Formwork and Construction
MDO plywood is a standard specification for concrete forming panels in North American construction markets. The smooth overlay face produces a clean concrete surface finish, and the WBP glue bond allows multiple pours before the panel degrades.
Concrete contractors and formwork rental companies typically order in pallet quantities on project cycles. If you're supplying into the North American construction distribution channel, MDO is a line item your contractor accounts will reorder predictably.

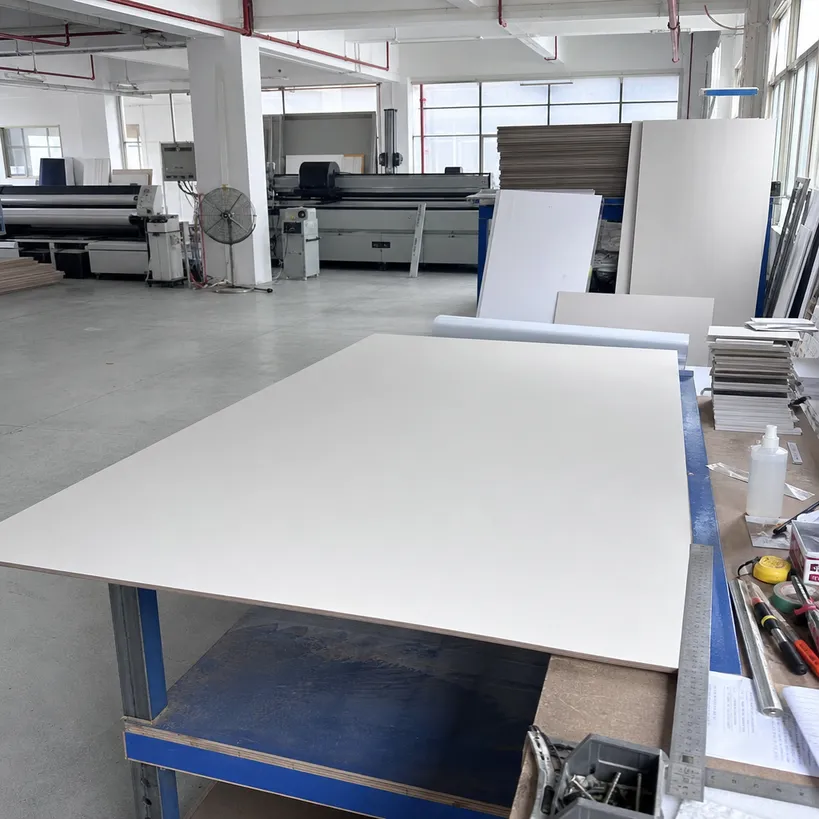

Signage and Display Fabrication
Sign shops and display fabricators use MDO board as a substrate for painted and digitally printed signage — the smooth, stable surface eliminates the grain telegraphing that makes standard plywood unsuitable for high-quality painted signs.
The margin on MDO versus commodity plywood is meaningful because the application demands the specific surface quality. Distributors supplying sign supply houses or print-and-cut shops find MDO a consistent pull-through SKU.

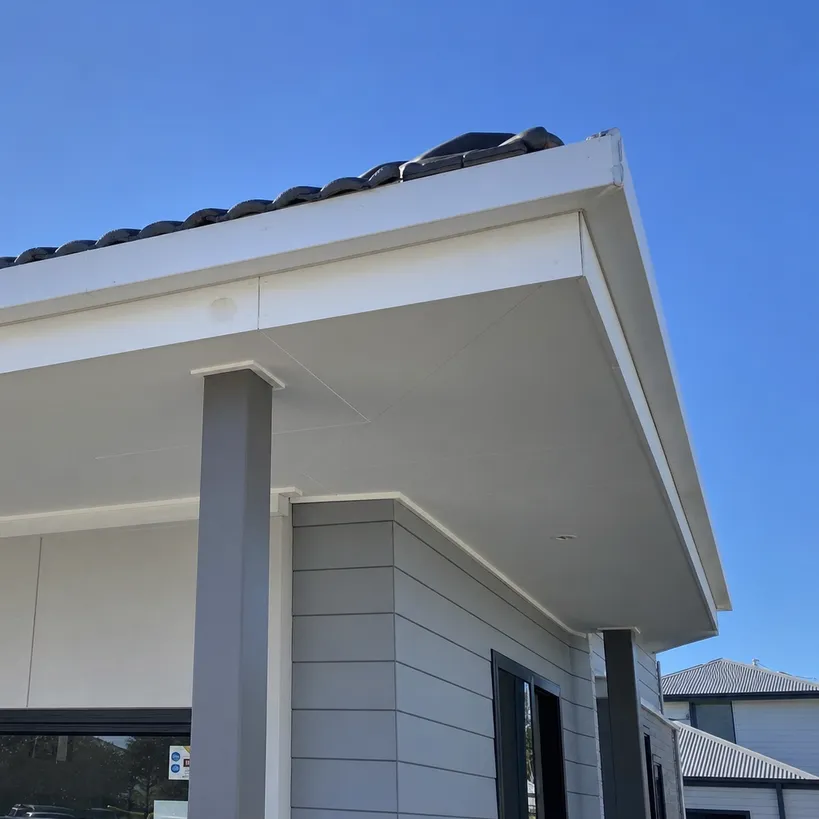

Exterior Sheathing and Soffits
In residential and light commercial construction, MDO panels are used for painted exterior applications — soffits, fascia boards, exterior wall panels — where dimensional stability and paint adhesion matter more than structural load capacity.
Builders' merchants and lumber yards in North American and Australian markets carry MDO as a standard SKU for this application.

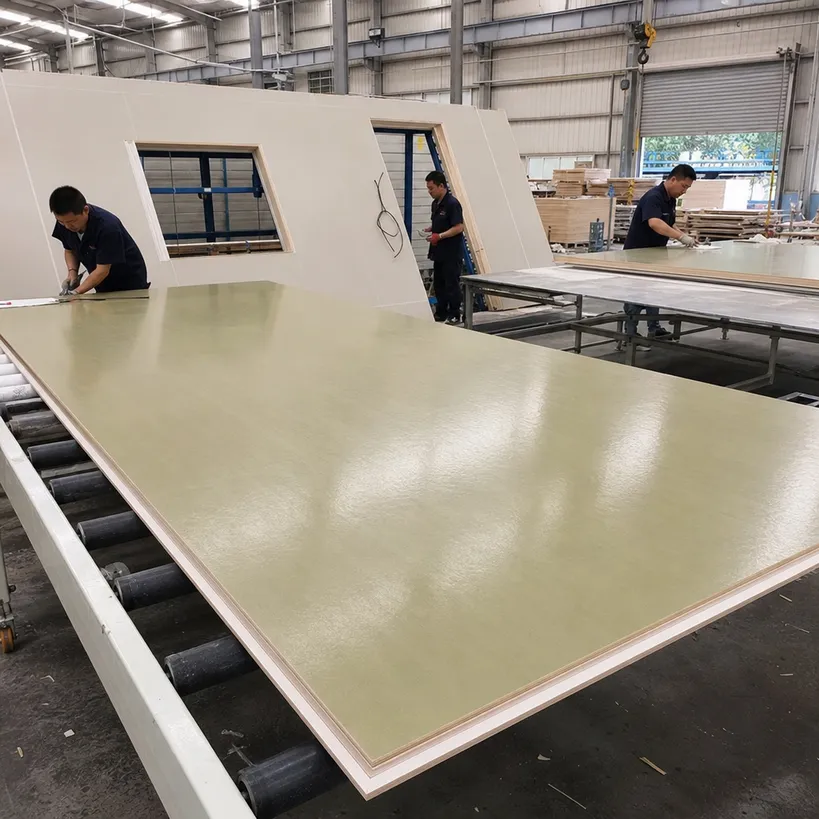

Prefab and Modular Construction Panels
Prefabricated building manufacturers use MDO as a substrate for factory-finished wall and ceiling panels — the consistent surface quality allows factory painting with predictable results, which is critical when panels are painted in batches and need to match across a building.
This segment tends to order in larger volumes with tighter specification requirements. The consistent surface quality is non-negotiable when panels are painted in batches and need to match across a building.
Tell us your target market and volume
Each of these segments has different specification requirements, order cadences, and packaging needs. We'll confirm the right MDO configuration — overlay weight, glue type, panel dimensions, and surface grade — for your specific distribution channel.
Confirm the Right MDO ConfigurationCustomization Parameters for MDO Plywood Orders
MDO plywood has more customization variables than standard sanded plywood, and getting the specification right for your market matters. Here's what we can configure.
Overlay Specification
Standard overlay weight is 220–280 g/m² per face. Heavier overlay up to 350 g/m² is available for applications requiring greater moisture resistance or more reuse cycles — concrete forming contractors in wet climates often specify heavier overlay for this reason.
Lighter overlay is available where paint adhesion is the primary requirement and cost is a constraint.
One-Side vs. Two-Side Overlay
Single-face MDO (overlay on one face, sanded veneer on the reverse) is standard for most signage and sheathing applications.
Double-face MDO is specified for concrete forming panels where both faces contact concrete, and for applications where the panel may be flipped or reversed in use. Two-side overlay adds cost; we'll recommend the right configuration based on your end-use description.
Core Construction
Standard MDO uses a hardwood veneer core. For structural applications requiring higher bending stiffness, we can produce MDO on a combi-core (hardwood face veneers with LVL or poplar core) or full hardwood core.
Core species and construction affect both the panel's mechanical properties and its weight — relevant for applications where panel weight affects installation labor cost.
Panel Dimensions
Standard 1220 × 2440 mm covers most applications. We produce non-standard dimensions on confirmed orders — 1220 × 3050 mm (5' × 10') for large-format signage and concrete forming, and custom widths for specific prefab panel systems.
Custom dimensions are a yield and scheduling question for us, not a tooling cost — so the premium over standard size is modest on confirmed volume orders.
Formaldehyde Emission Grade
CARB P2 is our standard for export. E1 and E0 grades are available for European and Japanese markets where those standards are specified.
All grades use the same WBP phenolic resin system; the difference is in resin formulation and press parameters.
Branding and Marking
OEM marking — your brand name, product code, or grade stamp on the panel edge or face — is available on orders meeting minimum volume thresholds.
We handle the marking as part of the production run, not as a post-production step.
Minimum order quantities and lead times vary by specification. Contact us with your target configuration and we'll confirm MOQ, lead time, and pricing.
Request PricingCompliance Coverage for Your Import Markets
MDO plywood sold into North America, Europe, and Australia faces specific compliance requirements. Here's what our certification stack covers.
CARB P2
Standard on all US shipmentsCalifornia Air Resources Board Phase 2
Required for hardwood plywood sold into California and effectively the baseline for the broader US market. Our MDO production meets CARB P2 as standard, and we provide the CARB documentation package with every US-bound shipment. This is not a special option — it's built into our resin formulation and press process.
FSC Chain of Custody
Available on requestSustainability Sourcing
For buyers with sustainability sourcing policies or customers who require FSC-certified materials. Our FSC CoC certification covers the wood fiber in our panels back to certified forest sources. If your downstream customers include retailers, government procurement, or corporate buyers with environmental sourcing requirements, FSC documentation eliminates a qualification hurdle.
CE Declaration of Conformity
EU shipmentsEuropean Construction Products
For European construction and building material applications. CE marking covers the panel's compliance with relevant EU construction product regulations. CE declaration of conformity is included with EU shipments as standard.
ISO 9001:2015
Audit reports on requestQuality Management System
Quality management system certification covering our production and QC processes. Audit reports available on request.
Documentation Prepared to Avoid Customs Delays
We've been through enough customs clearance cycles in these markets to know what documentation gaps cause delays. The paperwork is prepared to avoid them.
- US-bound shipments: full CARB documentation package as standard
- EU shipments: CE declaration of conformity included
- FSC-certified orders: full chain-of-custody records provided
Certifications Covered
Container Loading and Export Logistics
MDO plywood ships in standard 20HQ and 40HQ containers. Use the loading quantities below to plan your order volume and freight cost per panel.
Typical Loading Quantities — 1220 × 2440 mm Panels
| Thickness | Panels / 20HQ | Panels / 40HQ |
|---|---|---|
| 12mm | ~750–800 sheets | ~1,500–1,600 sheets |
| 15mm | ~600–650 sheets | ~1,200–1,300 sheets |
| 18mm | ~500–550 sheets | ~1,000–1,100 sheets |
| 21mm | ~420–460 sheets | ~840–920 sheets |
| 25mm | ~350–380 sheets | ~700–760 sheets |
Loading quantities are approximate and depend on panel weight, packaging, and container configuration. We provide a loading plan with each shipment.

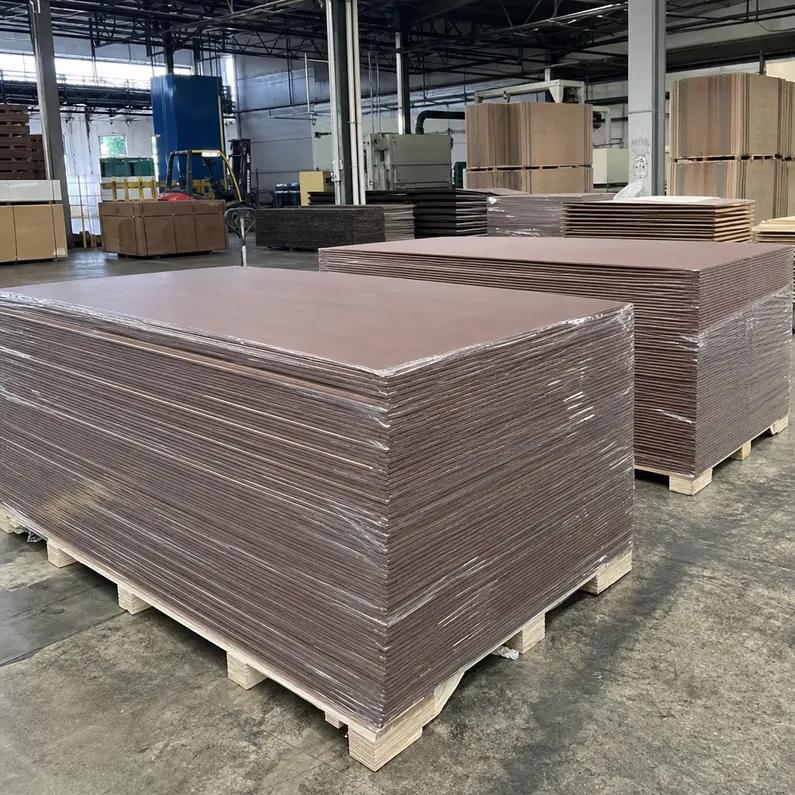

Export Packaging — MDO-Specific Protocol
Panels are bundled and strapped, edge-protected with corner boards, and wrapped in moisture-resistant film. The overlay surface is the critical protection point during ocean transit — moisture ingress at the panel edges can cause overlay lifting before the panels are even unpacked.
Our export packaging addresses this specifically: edge sealing is applied to all MDO panels before bundling, and the moisture-resistant wrap covers the full bundle including edges.
Transit Times to Major Destination Ports
Xuzhou connects to Qingdao, Shanghai, and Lianyungang ports.
Export Documentation Provided
We coordinate with freight forwarders and provide full export documentation. Certification documents provided as applicable to your import market.
MDO Plywood vs. Sibling Products in the Paper Overlaid Range
MDO plywood is one of three products in our paper overlaid plywood range. Use this comparison to match the right product to your buyer's application before placing an order.
| Attribute |
MDO Plywood
Current page
|
Paper Overlaid Plywood Panel | Paper Overlaid Plywood Sheet |
|---|---|---|---|
| Overlay type | Resin-impregnated fiber (medium density) | Decorative paper overlay | Standard kraft/decorative paper |
| Primary application | Concrete forming, signage, exterior sheathing | Interior decorative panels, furniture facing | General-purpose overlaid substrate |
| Surface finish | Smooth, paintable | Decorative pattern or solid color | Varies by paper specification |
| Moisture resistance | High (WBP glue + resin overlay) | Moderate | Moderate |
| Typical buyer | Construction distributor, sign supply, formwork rental | Furniture manufacturer, interior fit-out | General building materials distributor |
When MDO is the right call
If your accounts are in construction supply or signage, MDO is the right product. The resin-impregnated overlay delivers the smooth, paintable surface and moisture resistance that concrete forming, exterior signage, and sheathing applications require. No decorative surface variety needed — performance is the spec.
When the panel range fits better
If you're supplying furniture manufacturers or interior fit-out contractors who need decorative surface options, the paper overlaid panel range gives you more surface variety — decorative patterns, solid colors, and a broader finish selection suited to interior applications.
Explore the full paper overlaid plywood range
Compare all three products side by side and find the right overlay specification for each of your accounts.
Frequently Asked Questions
Common questions from distributors and importers evaluating MDO plywood for the first time — or switching suppliers.
MDO (medium density overlay) uses a fiber-reinforced resin paper at 220–280 g/m² per face — it produces a smooth, paintable surface suitable for signage, concrete forming, and exterior applications. HDO (high density overlay) uses a heavier, harder resin overlay (typically 350–500 g/m²) that is more abrasion-resistant and suited to high-reuse concrete forming where the panel contacts concrete repeatedly.
HDO costs more and is harder to paint uniformly because the denser overlay is less absorbent. For most signage and single-use or low-reuse forming applications, MDO is the right specification.
Supplier note: If your concrete forming customers are running 10+ pours per panel, ask us about HDO.
With proper handling and edge sealing between pours, MDO panels typically yield 5–10 reuses in concrete forming applications. The limiting factor is usually edge damage and moisture ingress at cut edges rather than overlay failure on the face.
Contractors who seal cut edges with a compatible edge sealant and store panels flat between pours consistently get toward the upper end of that range.
Factory option: We can supply panels with factory edge sealing applied, which extends reuse life and reduces on-site labor.
Yes. Our MDO plywood is produced to CARB P2 formaldehyde emission standards as the baseline specification — not as a special order option. We provide the full CARB documentation package with US-bound shipments.
If you're supplying into California or any US market where CARB compliance is a procurement requirement, the documentation is ready without additional lead time.
MDO accepts both latex (water-based) and oil-based paints well. Application guidance by use case:
Exterior signage & sheathing
Quality exterior latex primer followed by two topcoats. The overlay surface provides good mechanical adhesion without requiring sanding.
Concrete forming
No paint applied — the overlay face contacts the concrete directly.
Interior signage & display
UV-curable inks and digital print systems adhere well to MDO surfaces.
Note on powder coating: Not compatible with the overlay or substrate — the cure temperature would damage the panel.
MOQ varies by specification:
Standard 18mm MDO — 1220 × 2440 mm
A 20HQ container load is the typical starting point for new buyers — roughly 500 sheets.
Custom specifications
Non-standard thickness, custom dimensions, OEM marking — MOQ is higher and confirmed at the specification stage.
Evaluating MDO for a new product line? We can arrange a sample order before committing to a full container. Contact us with your target specification and we'll confirm the MOQ and lead time.
MDO plywood with WBP glue bond is suitable for exterior exposure when the panel edges and any cut surfaces are sealed and the face is painted with an appropriate exterior coating. The overlay itself provides moisture resistance on the face, but cut edges expose the veneer core and must be sealed to prevent moisture ingress.
Panels used in permanently wet or submerged conditions are not appropriate for MDO — marine plywood or film-faced panels are better suited to those applications.
Get a Quote for MDO Plywood
Send us your target specification — thickness, overlay grade, quantity, destination market, and any certification requirements — and we'll come back with a detailed quote and the relevant documentation for your import requirements. Most inquiries get a response within 24 hours.
New to sourcing MDO from China? Tell us your target market and the application your customers are buying for — we'll recommend the right overlay specification and core construction based on what's working for our existing distributors in that region.
Phone / WhatsApp
+86 18361278885Address
No. 88 Sanbao Industrial Park, Tongshan District,
Xuzhou, Jiangsu Province, 221116, China
Xuzhou QD Wood Industry Co., Ltd.
MDO Plywood Manufacturer — Xuzhou, China
18+
Years Manufacturing
24h
Quote Response
