18mm MDF Board Manufacturer
18mm MDF board at the thickness the furniture and cabinet industry runs on — produced to CARB P2 and E1 emission standards, available in plain and surface-treated configurations.

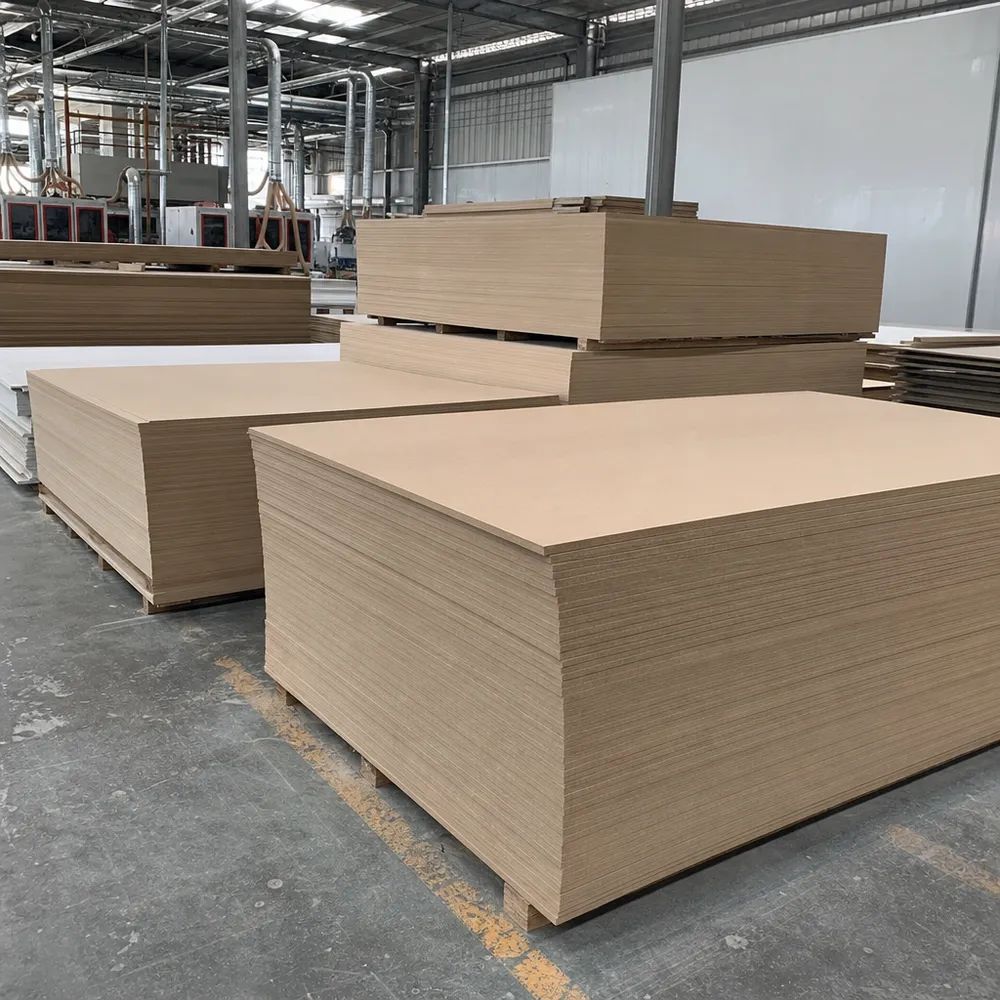

Standard 1220×2440mm sheets with thickness tolerance held to ±0.2mm across the panel. Custom dimensions, surface finishes, and OEM labeling available on confirmed orders.
Why 18mm Is the Workhorse Thickness in MDF
18mm sits at the intersection of structural adequacy and material efficiency for most interior panel applications. It's thick enough to carry shelf loads, accept hardware inserts, and hold edge profiles without telegraphing the substrate — and thin enough that it doesn't add unnecessary weight or cost to flat-pack furniture and cabinet carcasses.
The furniture manufacturing industry converged on 18mm as a de facto standard for cabinet sides, shelving, and door blanks because it works across the widest range of downstream applications without requiring thickness-specific tooling changes.
We produce 18mm MDF board as a core SKU, not a special-order item. That means it runs on a dedicated production schedule, raw material is stocked for it specifically, and lead times are predictable. If you're building a product line around this thickness — or sourcing it as a commodity input for a manufacturing operation — the supply chain reliability matters as much as the spec sheet.
We've had buyers come to us after a previous supplier switched 18mm to a made-to-order item with 6-week lead times. That's a supply chain problem, not a product problem — and it's the kind of thing that disrupts production schedules downstream.

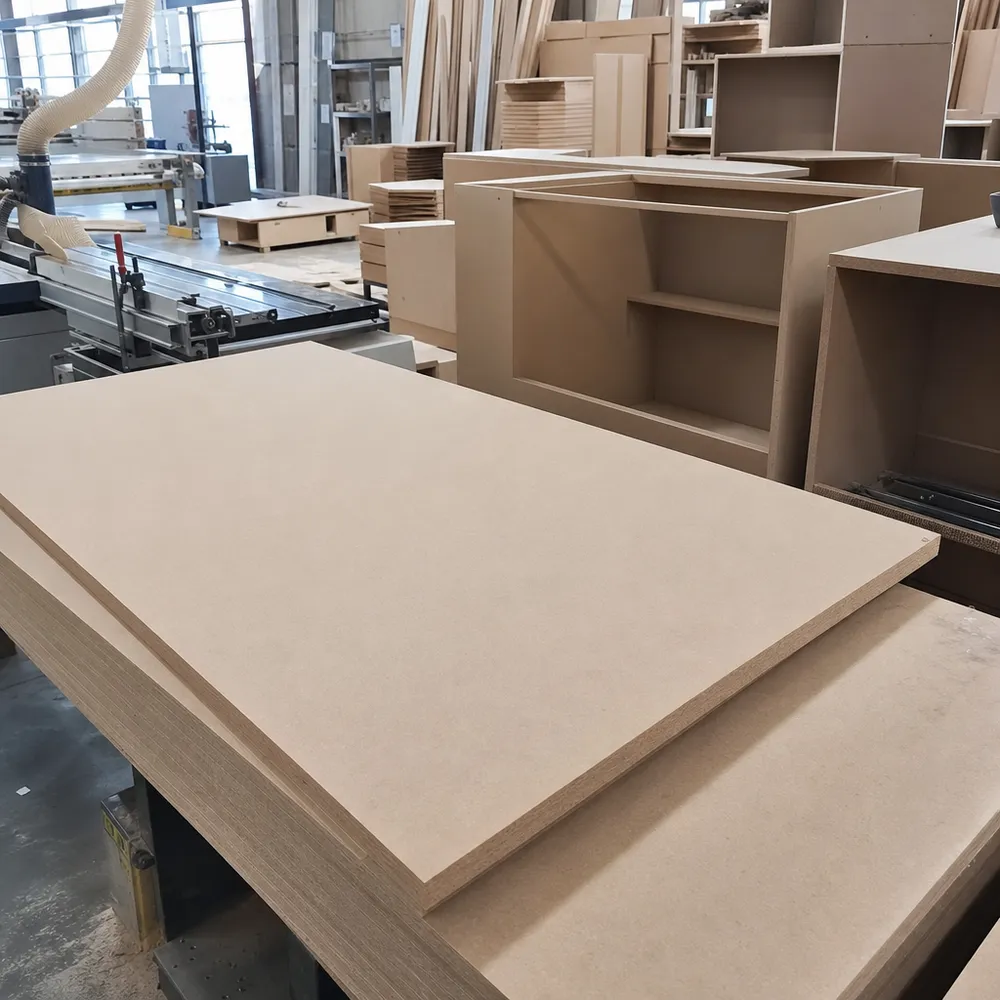

Cabinet Sides & Carcasses
Standard thickness for kitchen, bathroom, and storage cabinet construction.
Shelving & Panels
Carries shelf loads and accepts hardware inserts without deflection at standard spans.
Door Blanks
Holds edge profiles cleanly; no substrate telegraphing through veneer or laminate.
Flat-Pack Furniture
Efficient weight-to-strength ratio for flat-pack shipping economics.
18mm MDF Board Specifications
The table below covers the standard parameters for our 18mm MDF board. These are the values we produce to as a baseline; custom specifications are available on confirmed orders.
Standard Specification Sheet
18mm MDF Board — Production Baseline
Specifications shown are industry-standard values for this product type. Actual specifications may vary by batch and surface treatment. Contact us for detailed product data sheets and test reports.

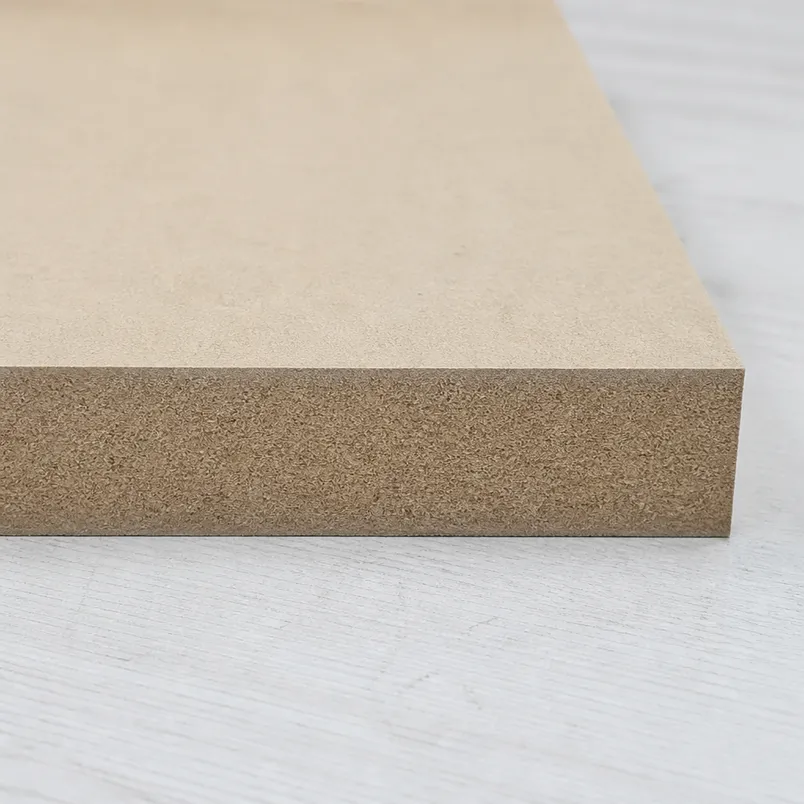

Understanding the Density Range
The density range of 700–750 kg/m³ is the standard commercial MDF band — dense enough for good screw holding and edge machining, without the weight penalty of HDF.
For flooring underlayment or door cores with specific acoustic requirements, ask about our HDF-grade panels.
For flat-pack shipping economics, we can discuss lower-density options on volume orders.
Request Full Data Sheets
Get detailed product data sheets and third-party test reports for our 18mm MDF board. Available on request for qualified buyers.
Request a Quote for 18mm MDF BoardEmission Compliance: CARB P2 and E1 as the Production Baseline
This is the section most buyers in North America and Europe need to read carefully before placing an order.
One Resin System. No Dual-Track Production.
The whole production line runs to the tighter standard
We formulate our MDF resin systems to meet CARB P2 as the production baseline — not as a premium option or a special certification run. CARB P2 sets a formaldehyde emission limit of 0.11 ppm for MDF panels, which is the most stringent standard in our export markets. E1 (the European standard, ≤ 0.124 mg/m³ air chamber concentration) is met as a consequence of the same resin formulation.
We don't run two separate resin systems — one for compliant orders and one for non-compliant domestic supply. The whole production line runs to the tighter standard.
Why This Matters Commercially
Documentation that holds up to scrutiny
If you're distributing into California, the EU, or any market where formaldehyde compliance is a customs or retail gate, you need documentation that holds up to scrutiny — not a certificate that was issued once and hasn't been re-tested since.
We run periodic third-party emission testing through SGS and Bureau Veritas, and test reports are available on request. For US-bound shipments, we prepare the CARB documentation package as standard. For EU shipments, the CE declaration of conformity covers the emission compliance requirement.
Third-Party Testing & Documentation
-
SGS & Bureau Veritas
Periodic third-party emission testing — test reports available on request
-
CARB Documentation Package
Prepared as standard for all US-bound shipments
-
CE Declaration of Conformity
Covers emission compliance requirement for EU shipments
-
FSC Chain-of-Custody
Wood fiber traceable to certified forests — relevant for sustainability sourcing policies and deforestation-linked supply chain risk

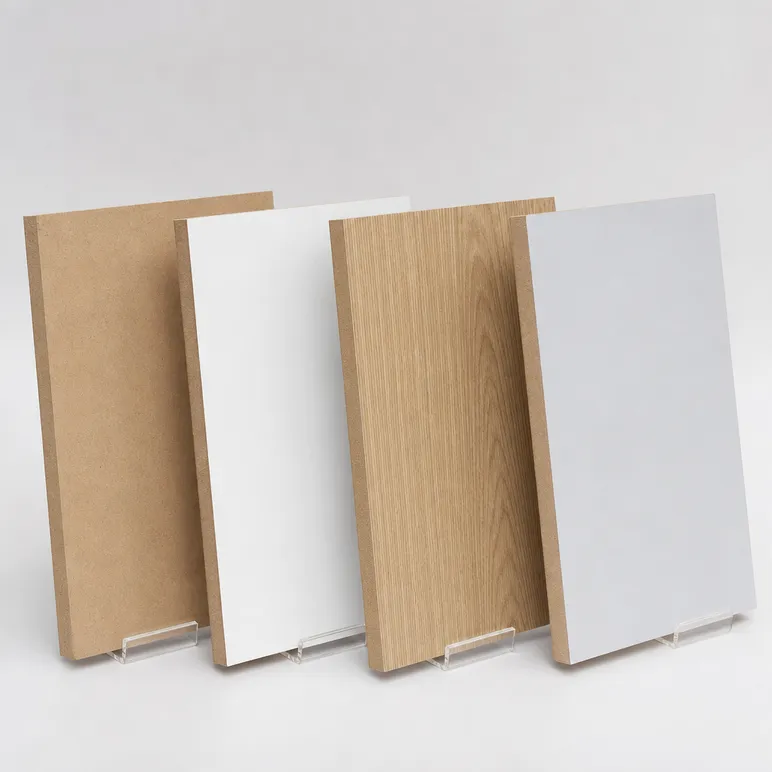

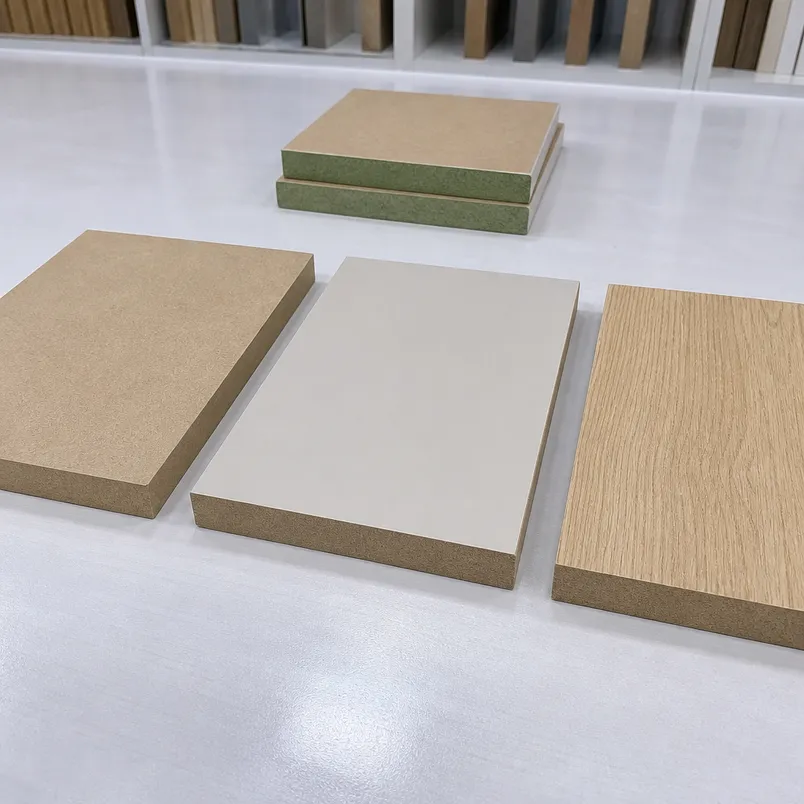

Surface Configurations: Plain MDF vs. Surface-Treated Options
Plain 18mm MDF — sanded both sides, calibrated to ±0.2mm — is the base product. It's what furniture manufacturers and cabinet shops run through their own finishing lines. The sanded surface accepts paint, lacquer, and veneer adhesive without additional preparation, which is why it's the standard input for downstream processing operations.

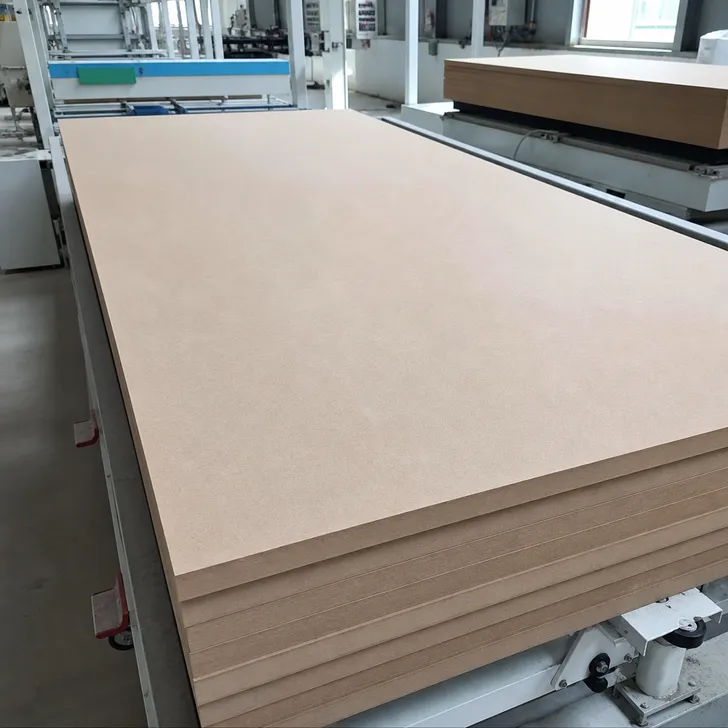

Plain 18mm MDF
Sanded both sides, calibrated to ±0.2mm. The standard input for downstream processing operations — accepts paint, lacquer, and veneer adhesive without additional preparation.
For plain 18mm MDF board going into your own processing line, the spec table in the earlier section applies.
Melamine-Faced 18mm MDF
Flat-pack furniture · retail shelving · kitchen cabinet carcasses
Melamine paper pressed directly onto both faces, available in white, woodgrain, and solid color options. The surface is already finished, so your downstream customer or assembly operation doesn't need a separate finishing step. The finishing cost is built into the panel price rather than added downstream.
If you're sourcing for a flat-pack furniture brand or a kitchen cabinet manufacturer, the melamine-faced version typically makes more sense than plain MDF.
Veneer-Faced 18mm MDF
Mid-range furniture · architectural millwork
Natural wood veneer pressed onto MDF substrate — used for furniture components where the appearance of solid wood is required but dimensional stability and cost efficiency matter. Common in mid-range furniture manufacturing and architectural millwork.
Primer-Coated 18mm MDF
Door blank manufacturing · painted furniture production
One or two coats of primer applied at the factory, reducing the number of finishing steps in your production line. Used in door blank manufacturing and painted furniture production.
Surface-Treated Configurations: Additional Parameters
Surface-treated configurations have additional parameters beyond the plain MDF spec table. Contact us with your specific surface requirement and we'll provide the relevant spec sheet.
- Melamine color and texture options
- Veneer species and cut specifications
- Primer coat count and formulation
- Surface-specific emission and adhesion test data
Where 18mm MDF Moves: Market Segments Worth Knowing
Understanding which segments drive volume — and what each segment actually demands — helps distributors position stock and helps buyers confirm they're ordering the right configuration.

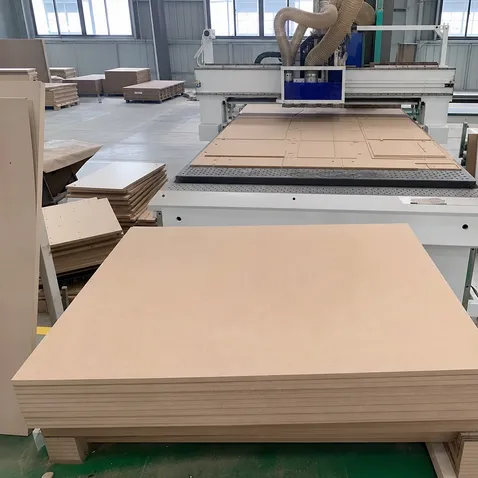

Flat-Pack Furniture Manufacturing
Highest Volume
The highest-volume segment for 18mm MDF globally. Furniture manufacturers running CNC cutting lines consume 18mm MDF in large quantities for cabinet carcasses, shelving, and drawer components. The standard 1220×2440mm sheet size optimizes yield on standard CNC nesting software.

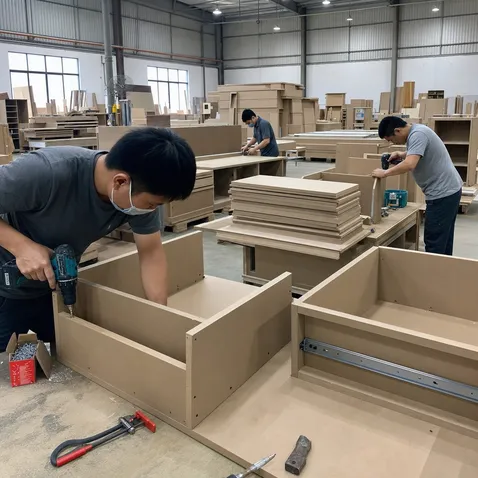

Kitchen & Bathroom Cabinet Production
Year-Round Demand
Cabinet manufacturers use 18mm for box construction — sides, tops, bottoms, and fixed shelves. Screw-holding values at face and edge are the critical parameters: 18mm MDF at 700–750 kg/m³ density holds cam locks and confirmat screws reliably, which is why it displaced particleboard in most mid-to-high-end cabinet production.

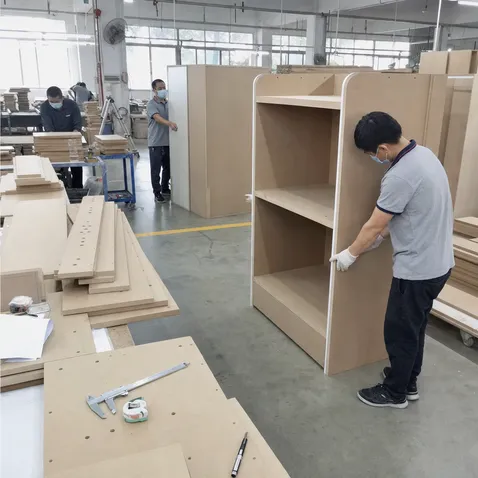

Shopfitting & Retail Display
Tolerance-Critical
Retail fixture manufacturers use 18mm MDF for display units, shelving systems, and point-of-sale structures. This segment values surface quality and dimensional consistency — panels out of tolerance cause fit problems in modular fixture systems. The ±0.2mm thickness tolerance is the parameter that matters most here. Shopfitting projects often involve mixed orders consolidated into a single container, which we can accommodate.
Door Blank Manufacturing
High Volume18mm MDF is used as the core material for flush interior doors — routed, faced with veneer or HDF skin, and lipped with solid timber. Door manufacturers typically run high volumes with tight dimensional requirements.
Architectural Millwork & Joinery
High FrequencyMillwork shops use 18mm MDF for painted cabinetry, built-in furniture, and architectural panels. The smooth, grain-free surface is the key advantage over plywood for painted applications — no grain telegraphing through the paint film. This segment tends to order in smaller quantities but at higher frequency, making it a good fit for distributors who stock locally and sell on short lead times.
Not Sure Which Segment Fits Your Buyer?
Tell us your target market and volume — we'll suggest the right configuration, surface treatment, and order structure for your distribution model.

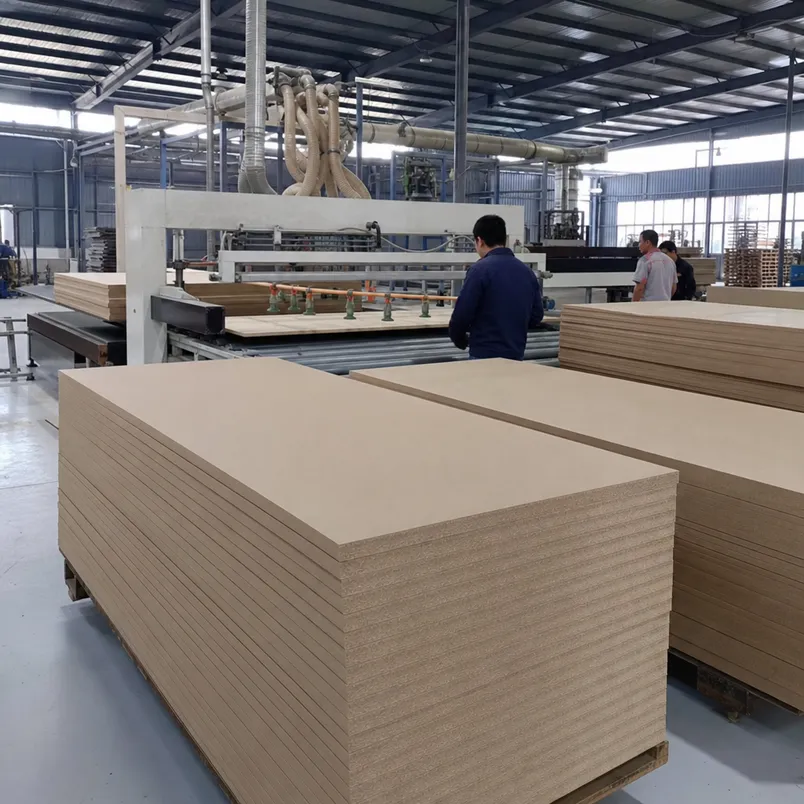

How We Produce 18mm MDF: The Process Details That Affect Your Order
MDF production looks straightforward on paper — fiber, resin, press — but the variables that determine whether a panel is consistent across a batch are in the details of fiber preparation, resin application, and press control.

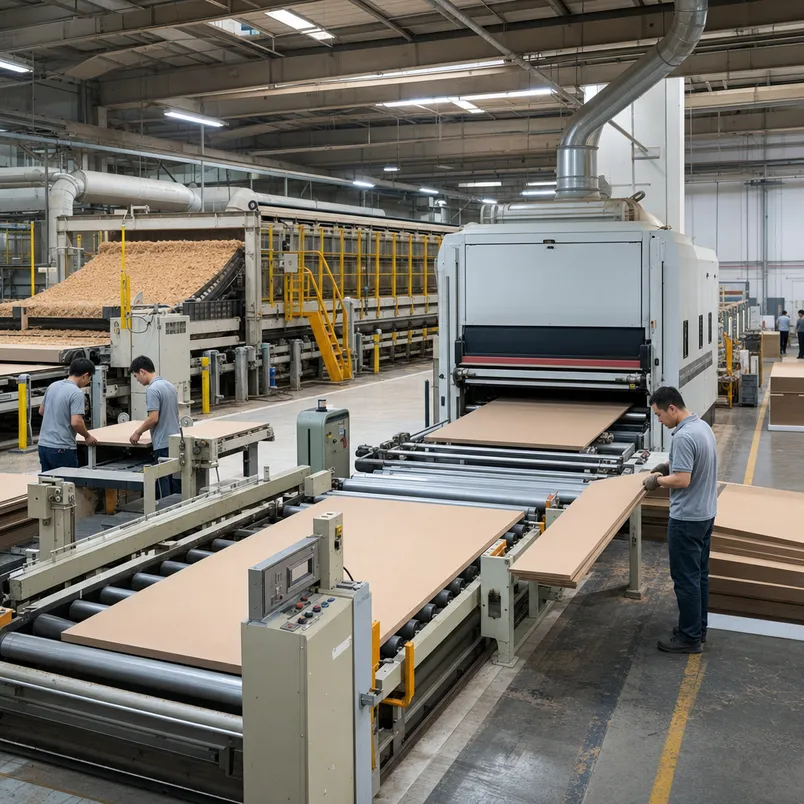

Continuous Press Line & Thickness-Specific Parameters
We run a continuous press line for MDF production. The fiber mat is formed at controlled density before entering the press, and press temperature and pressure profiles are calibrated specifically for 18mm thickness — the heat transfer dynamics through an 18mm mat are different from a 12mm or 25mm panel.
Using the same press parameters across thicknesses produces inconsistent core density. We set the press parameters per thickness, not per shift. That's the difference between a panel that measures 18mm at the surface and 18mm through the core, versus one that has a density gradient causing the panel to behave differently at the face versus the center when routing or drilling.
Resin Application & Emission Control
We use urea-formaldehyde resin systems formulated to CARB P2 emission limits, applied at a controlled spread rate across the fiber mat. The spread rate is monitored per batch, and internal bond strength is tested on samples from each production run.
Low internal bond strength — panel delaminates under load or when moisture cycles
Drives up formaldehyde emissions and adds cost without improving mechanical properties
Sanding Line & ±0.2mm Thickness Tolerance
The sanding line calibrates both faces to ±0.2mm tolerance. We run a wide-belt sander with thickness gauges at entry and exit — if a panel is out of tolerance, it's pulled before it reaches the stacking line.
Why this matters for automated cutting equipment: A panel that's 0.5mm over thickness causes feed errors on CNC routers and panel saws — and the problem doesn't show up until your customer's production line stops. This is the QC step that matters most for buyers running automated equipment.
Internal bond strength tested on samples from every production run — not spot-checked by shift
Press parameters set per thickness, not per shift — consistent core density from face to center
UF resin formulated to CARB P2 limits, spread rate monitored per batch for emission and bond consistency
Customization Parameters for 18mm MDF Orders
Standard 18mm MDF ships at 1220×2440mm. Non-standard dimensions are available on confirmed orders — the practical range for custom sizing is 600–1830mm width and 1220–3660mm length, subject to minimum order quantities. Custom dimensions are a scheduling and yield question, not a capital investment question, so the MOQ for custom sizes is lower than you might expect from other panel categories.
| Customization Option | Available Range | Notes |
|---|---|---|
| Thickness | 2.5mm – 25mm | 18mm is standard stock; other thicknesses on confirmed order |
| Panel Width | 600 – 1830mm | Standard 1220mm in stock |
| Panel Length | 1220 – 3660mm | Standard 2440mm in stock |
| Surface Treatment | Plain sanded / Melamine-faced / Veneer-faced / Primer-coated | Melamine colors and woodgrain patterns available |
| Emission Standard | E1 / CARB P2 / E0 | CARB P2 is production baseline; E0 available on request |
| Density Grade | Standard (700–750 kg/m³) / Moisture-resistant / HDF | Specify application for grade recommendation |
| OEM Labeling | Bundle marking, brand labeling, custom packaging | Available on volume orders |
Moisture-Resistant (MR) Grade
MR grade MDF uses a modified resin system and is produced with green-dyed core fiber for identification. Specify this grade for bathroom cabinetry, kitchen applications, or any installation environment with elevated humidity. Standard MDF is not suitable for wet areas — the MR grade handles intermittent moisture exposure without swelling at the edges.
E0 Emission Specification
E0 (≤ 0.05 ppm formaldehyde) uses a low-emission resin system that adds cost relative to the CARB P2 baseline. Worth specifying if you're supplying into markets with stricter indoor air quality requirements — Japan, South Korea, and EU markets with voluntary green building standards above the regulatory minimum.
Have a non-standard specification?
Send us your dimensions, surface treatment, and emission requirement — we'll confirm availability and lead time.

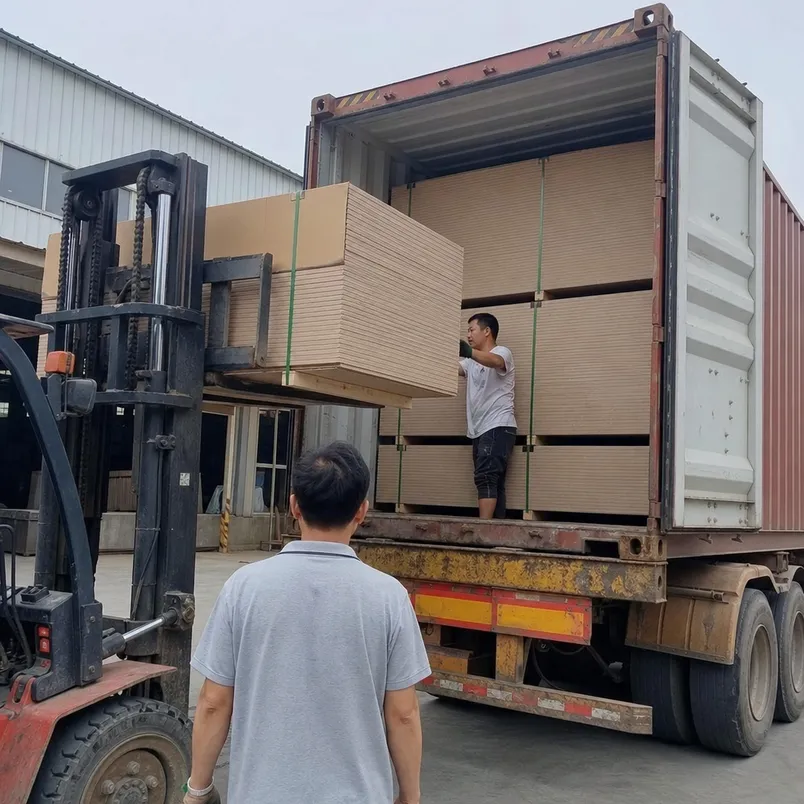

Container Loading and Export Logistics
18mm MDF at 1220×2440mm loads efficiently into standard containers. The numbers below are planning figures — actual loading depends on panel count, surface treatment, and packaging configuration.
Packaging and Bundle Specification
- Panels bundled in packs of 50–100 sheets depending on surface treatment
- Strapped and wrapped in moisture-resistant film for ocean transit
- Edge protection applied on melamine-faced and veneer-faced panels where surface damage during transit would be a quality issue
- Each bundle marked with product specification, thickness, surface treatment, batch number, and destination port
Mixed-Container Orders
For mixed-container orders — 18mm MDF combined with other panel products — we coordinate the loading plan to maximize cubic utilization and provide a detailed packing list before shipment. Buyers ordering across multiple product categories (MDF, melamine MDF, plywood) can consolidate into a single container to reduce per-unit freight cost.
Transit Times from Xuzhou
Xuzhou connects to Qingdao, Shanghai, and Lianyungang ports
Export Documentation Package
Documentation is prepared before the container is loaded — not after it's already at the port.
Sibling MDF Products: Finding the Right Configuration
18mm MDF is one of five MDF products we produce. If 18mm plain MDF isn't the right fit for your application, here's where the other products sit.
MDF Board
Full Range OverviewFull MDF range overview — multiple thicknesses, all surface options.
MDF Furniture Board
Furniture GradeFurniture-grade MDF with tighter surface quality specs for visible components.
HDF MDF
≥ 800 kg/m³High-density fiberboard for flooring underlayment, door skins, and applications requiring higher hardness.
CNC MDF
Routing & LaserMDF optimized for CNC routing and laser cutting — consistent density profile for clean edge definition.
18mm Melamine MDF
Ready to Assemble18mm MDF with melamine surface already applied — ships ready for assembly, no downstream finishing required.
Plain 18mm MDF vs. 18mm Melamine MDF: Which to Specify
Plain MDF makes sense when you're running your own finishing line or need flexibility across multiple surface treatments. Melamine-faced makes sense when the panel goes directly into assembly without further surface processing — the finishing cost is lower when it's done at scale in the factory than when it's done piece by piece downstream.
View all MDF productsFrequently Asked Questions
Technical and commercial questions we receive most often from importers, distributors, and manufacturers specifying 18mm MDF.
Standard production size is 1220×2440mm — this is the size that loads efficiently into containers and runs through standard CNC cutting equipment without waste.
Custom dimensions are available on confirmed orders within the range of 600–1830mm width and 1220–3660mm length. MOQ for custom sizes is higher than for standard sheets; contact us with your target dimensions and volume for a specific quote.
European standard — ≤ 0.124 mg/m³ air chamber concentration.
California Air Resources Board standard for MDF — ≤ 0.11 ppm. Slightly more stringent than E1 and the de facto standard for US market entry. Our production baseline; satisfies both E1 and US import requirements.
≤ 0.05 ppm — voluntary standard used in markets with stricter indoor air quality requirements (Japan, South Korea, some green building specifications). Available on request at additional cost.
Standard MDF is not recommended for wet areas or environments with sustained elevated humidity — it will swell at the edges when exposed to moisture.
For bathroom vanities, kitchen base cabinets near sinks, or any installation with intermittent moisture exposure, specify moisture-resistant (MR) grade MDF. MR grade uses a modified resin system and is identifiable by green-dyed core fiber. We produce MR grade in 18mm; contact us to confirm availability and lead time.
These values support cam lock fittings, confirmat screws, and standard cabinet hardware reliably. Edge screw holding is lower than face — this is a characteristic of all MDF, not a defect.
For applications requiring higher edge screw holding (heavy-duty shelving, hardware-intensive cabinet construction), specify higher-density MDF or use edge banding with solid timber lipping to improve the edge substrate.
For US-bound shipments, we prepare the CARB documentation package as standard. For EU shipments, CE declaration of conformity is included. FSC chain-of-custody records are available for FSC-certified orders.
Third-party test reports from SGS and Bureau Veritas are available on request. Send us your inquiry and specify your destination market — we'll include the relevant documentation package with your quote.
Standard 18mm plain MDF (1220×2440mm) — lowest MOQ and shortest lead time; runs on a regular production schedule.
Surface-treated configurations (melamine-faced, veneer-faced) — higher MOQ than plain MDF.
Custom dimensions — higher MOQ than standard sheet sizes.
Contact us with your target volume and specification — we'll confirm MOQ, lead time, and provide a detailed quote.
Get a Quote for 18mm MDF Board
Send us your specification and we'll come back with a detailed quote, the relevant certification documentation for your import requirements, and a loading plan for your container configuration.
What to Include in Your Specification
-
Thickness confirmation
18mm standard or custom thickness requirement
-
Surface treatment
Plain MDF, melamine-faced, veneer, or primer-coated
-
Emission standard
CARB P2, E1, E0, or market-specific requirement
-
Destination market
Determines which certification documentation applies
-
Target volume
Sheets per order or container count — affects loading plan
Start with a Sample Order
Most buyers in this category start with a sample order to verify surface quality and dimensional consistency against their own production tolerances before committing to a full container. We can ship samples — contact us to arrange.
What We Return With Your Quote
A detailed price quote, the relevant certification documentation for your import requirements, and a loading plan for your container configuration.
